1. Office overview:

Determine the type of ceiling ceiling according to the on-site inspection of the office space, and estimate the office area and how many offices need to be installed.

2. Main issues:

A. People work indoors for a long time and the air quality is poor.

B.The air does not circulate with the outside world, leading to serious pollution.

3. Solution:

①Selection instructions: Install an electronic air cleaner to fully purify and disinfect the circulating air in the room, using independent flush embedded U130A or U250A models. Improving indoor air quality.

②Instructions for use:

According to the building regulations of public places, the air circulation in the conference room can reach 6-8 times under normal conditions, which can ensure that the indoor air quality reaches the "Indoor Quality Standard of the Chinese People's Communist Party". According to the regulations of indoor air quality standards, the clean air required per person per hour is 60m³, which is calculated based on the above data and meets the "Indoor Quality Standards of the Chinese People's Communist Party".

The area is 40-50㎡ and the storey height is 2.7m. One electronic air cleaner U130A is required.

With an area of 70㎡ and a floor height of 2.7m, one electronic air cleaner U250A is required.

The specific configuration is as follows:

Sub total: U130A=14 sets; U250A=1 set

4. Installation location:

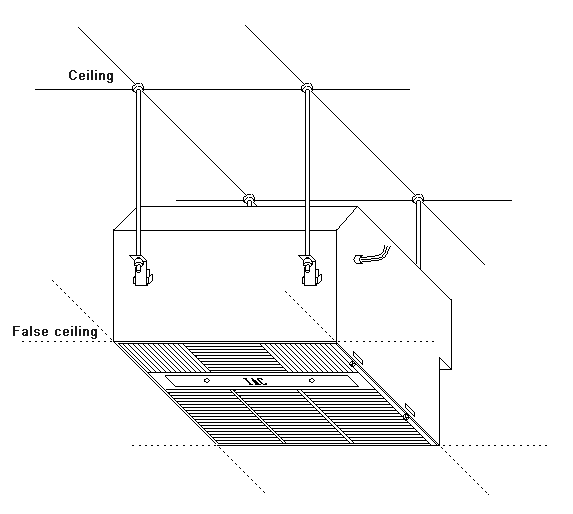

U130A is installed on the ceiling, the panel is flush with the ceiling, and does not occupy any useful space.

Installation location

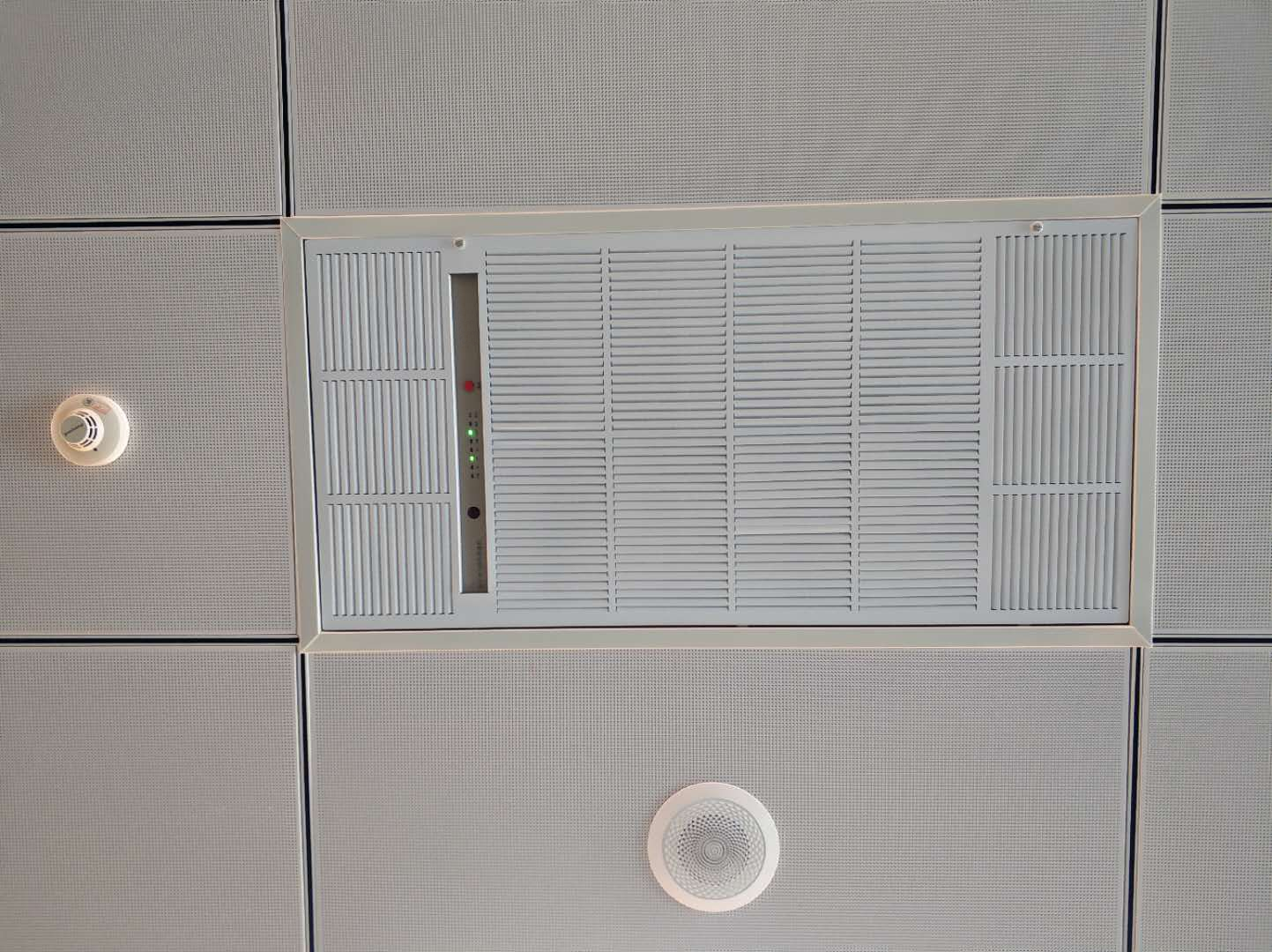

Project installation picture

5. Achieved effect

Purification effect: The purification efficiency of the electronic air cleaner is as high as 99.9% or more. After the electronic air cleaners are installed in the above places, the air quality can fully meet the indoor quality standards of the Chinese People's Communist Party.

Solve the secondary pollution caused by indoor smoke and dust to other personnel, and ensure clean and fresh indoor air. Provide a comfortable, healthy and environmentally friendly office environment.

Air cleaner basic principle: the main structure is three-layer filtration.

a. The first layer is a metal primary filter to filter larger particles of pollutants;

b. The second layer is an electronic high-voltage electrostatic adsorption filter unit, which is close to the sub-efficient filtration efficiency, and the filtration efficiency for 0.5 micron suspended particles can reach 95-99%;

c. The third layer is a rear filter, with activated carbon, cold catalyst, photocatalyst and other options. For the solution to the excessive formaldehyde pollution from the decoration, we can choose the photocatalyst net.

Features:

It can filter out more than 96% of polluted dust from the air; the sterilization rate is as high as 99.96%; the formaldehyde removal rate is 86.3% after starting up for 3 hours, and 97.8% after starting up for 5 hours.
