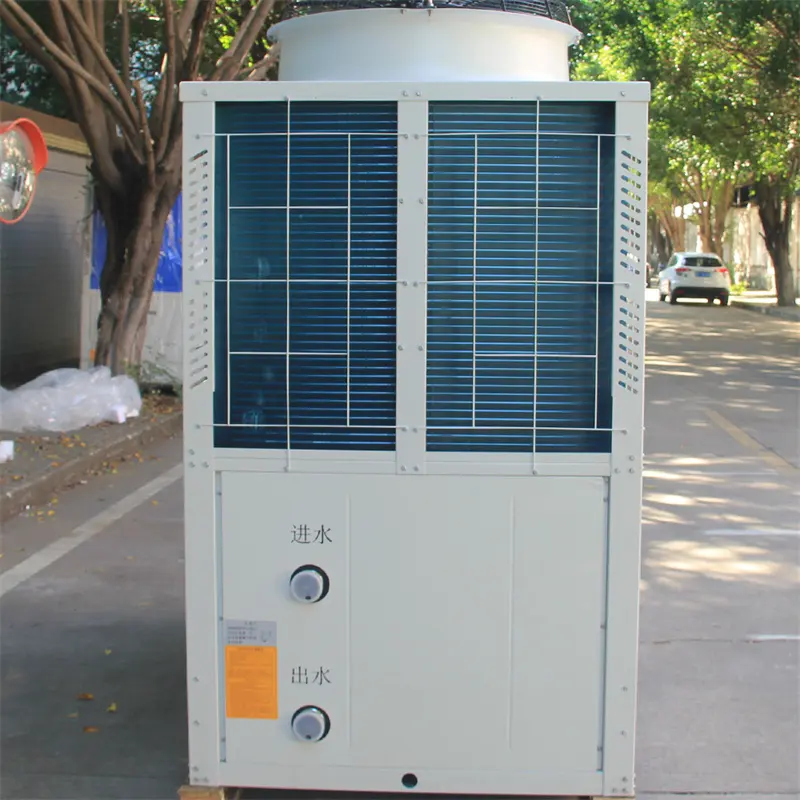

20 Tons Cooling Capacity Free Hot Water Heater HVAC Heat Recovery Air Cooled Chiller

Cooling capacity:68kW

Heat capacity:74kW

Refrigerant:R410A

COP:3.20W/W

Throttling device:Electronic expansion valve

Compressor type:Scroll Hermetic

Fan type:Axial

Heat exchanger type:High efficiency vacuum brazed plate

After Warranty Service:Video technical support

Feature:Inverter low temperature chiller

Buy

Details

Heat recovery modular air-cooled heat pump unit

1.Hot water at 55°C for free

2.Comprehensive performance coefficient up to 7.8

3.Far surpassing the national secondary energy efficiency

4.Multiple modes can be switched

5.Network control

6.One machine for multiple uses
