High Efficiency Low Noise Ceiling Fan Coil Unit Inverter Concealed Round Fan Coil Units
Design Features

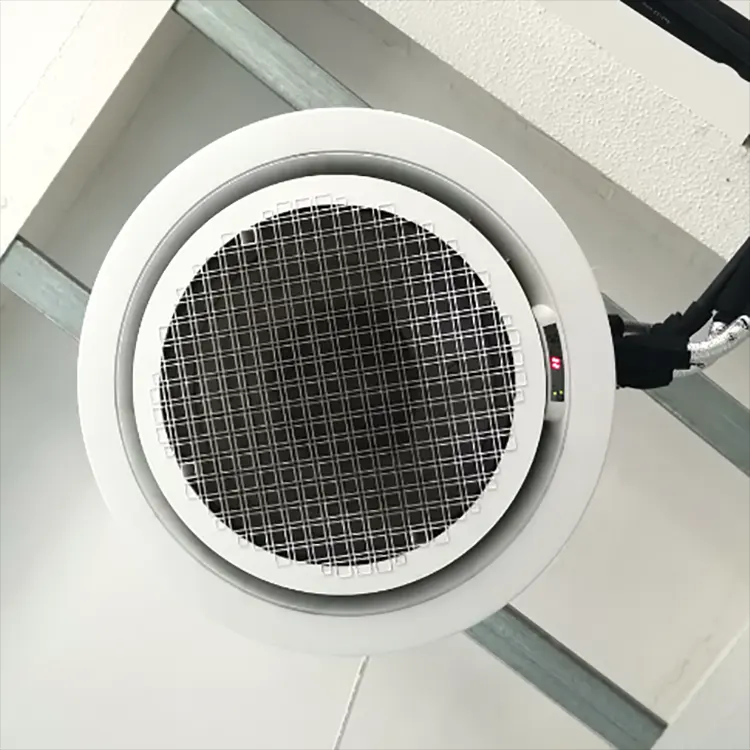

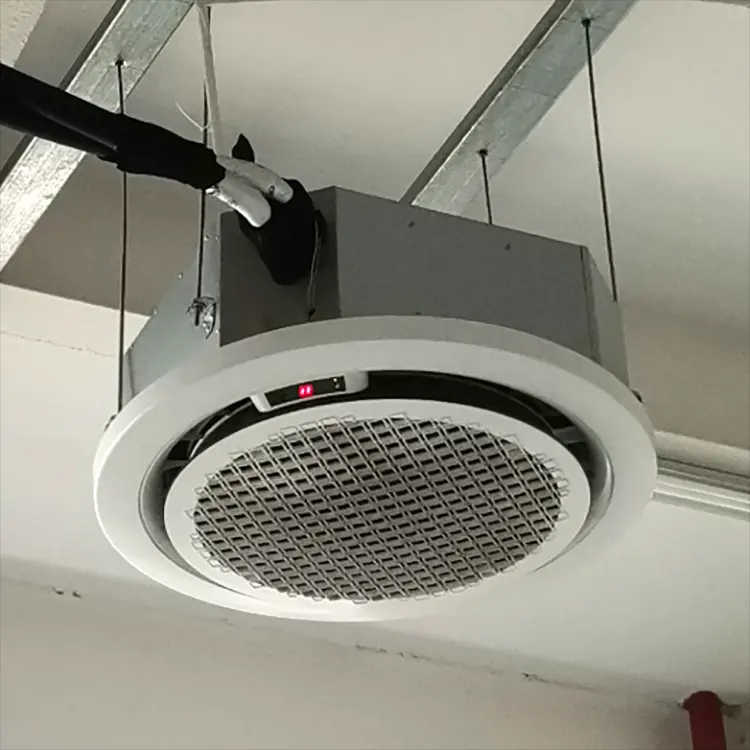

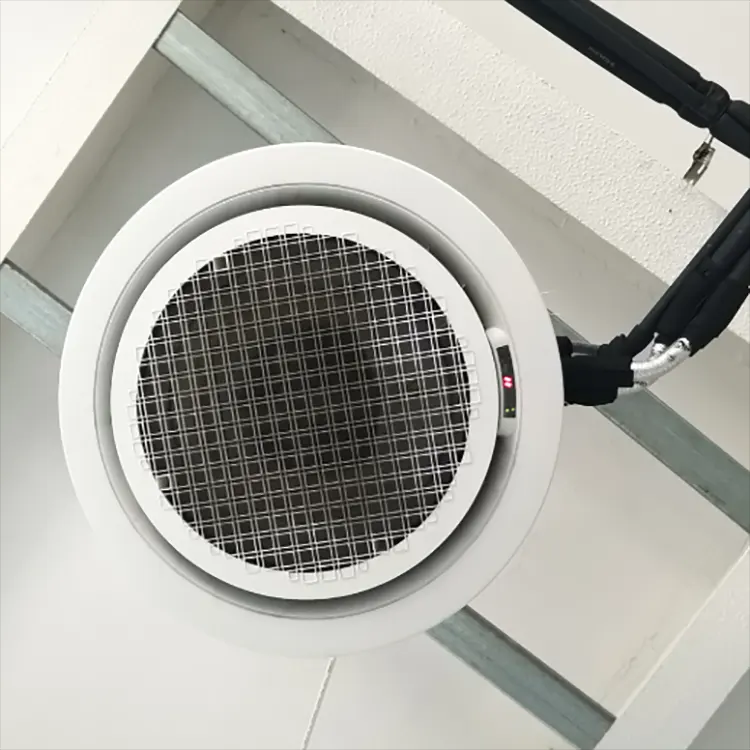

Round Cassette with an innovative 360 airflow ensures optimal air conditioning which also eliminates dead zones. 360 degree directional wind coming out from circular heat exchanger can deliver air evenly throughout every corner in any space
1 Unit Body
Made of Galvanized steel, with pre-formed expanded polystyrene air passages suitable shaped to allow passage of air, thickness enough for thermal and acoustical insulation

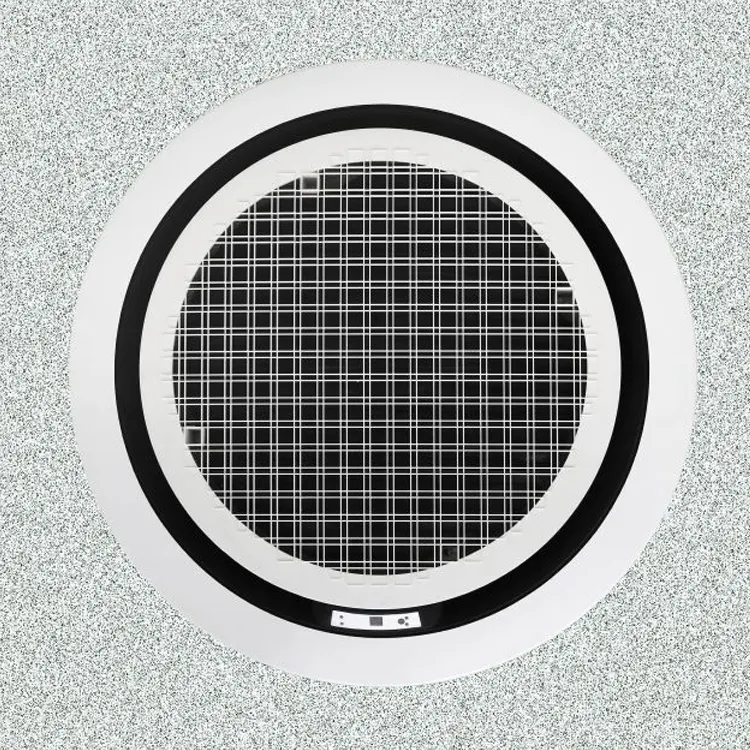

2 Panel Assembly-with Digital LED Display
Aesthetic panel design, in ABS material with synthetic washable and removal air filter and equipped with digital LEd display
3 Plastic Wheel-Quiet Running
One-time injection forming, no welding between the fan blades and inlet cone/end plate, it makes the wheel good balancing; an anti-vibration rubber is installed on the hub to ensure less vibration low noise on the wheels and motors Each wheel will be balanced under G 0.5mm/s
4 Fresh Air Intake
Fresh air intake is sandard for for the unit
5 Circular Heat Exchanger
High efficiency circular coil are made of copper tubes and high exchange surface area aluminum blue fins. With built-in EEV,external EEV is optional
6 Condensate Drain Pan
In thermoforming high density expanded polystyrene, covered with a vacuum forming polyvinyl chloride, fitted with a conden-sates draining pump and a safety float
7 Drain Pump and Float Switch
700mm head drain pump with no return valve is installed in the unit; an float switch inside as well to prevent from leaking. If the water raising to a certainly position, the float switch will act and alarm, then the unit will cut off the water valve or stop the fan motor
EC (eletrical commutation ) inverter Fan,infinitely variable speed, energy saving and high efficiency
What is the meaning of AC DC EC fan
AC (Alternating Current) fan is an AC power frequency fan, input AC power, power frequency operation, only high, medium and low air volume, need to increase the frequency converter to adjust the frequency.
DC (Direct Current) fan is a DC variable frequency fan, inputting DC power and requiring external conversion from AC to DC.
EC (Electrical Commutation) fan is a DC brushless fan, input AC power, built-in intelligent control module, convert AC power to DC power, and it can adjust the speed according to the ambient temperature, less power consumption, only 1/3 of the industrial standard fan
