MTAC-LH大冷量系列模块式空气源冷水（热泵）机组 (MRAC300/450/600ARLH)
蒙奇威公司推出的模块式风冷冷水（热泵）机组是高能效产品，其研发理念基于“碳达峰”和“碳中和”，结合了低温热泵和喷射焓增技术。机组的低环境温度减少了散热，具有更宽的运行范围，能够满足不同地区的制冷和制热需求。它可广泛应用于新建和改造的工业与民用建筑，如酒店、宾馆、娱乐中心、电影院、工厂、超市等场所。尤其适用于对噪音和环境要求高、水资源匮乏以及不适合安装冷却塔的地方。模块式机组安装灵活，可分期投资，建设周期短。
The unit adopts effcient and environmentally friendly refrigerantR410A, which is chlorine free and will not damage the ozonelayer (ODP=0).

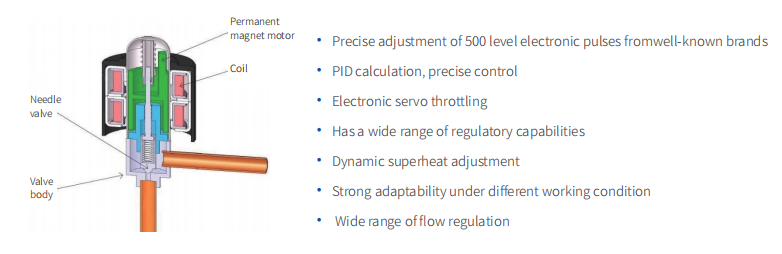

Auxiliary jet enthalpy system is controlled by electronic expansion valves, which ensures the safety of the unit, and at the same time, controls the output of the unit's capacity more accurately and efficiently.

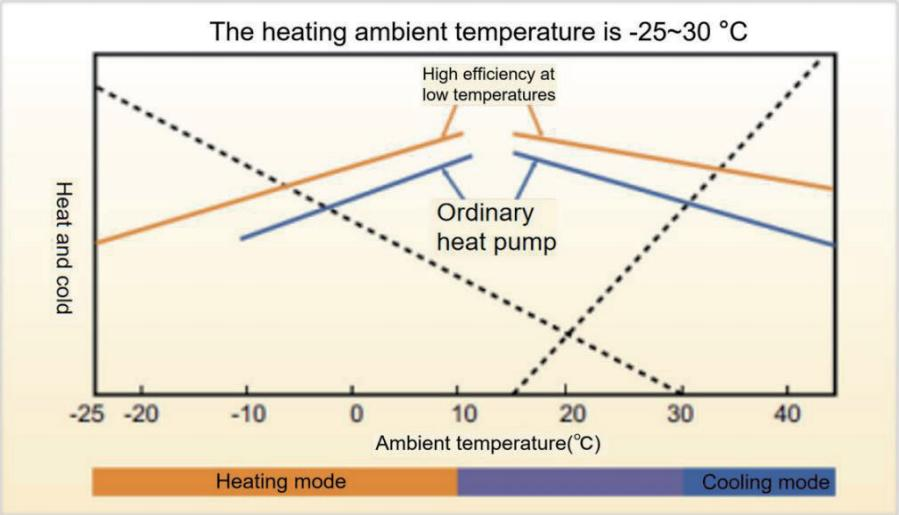

The unit boosts low-temp heating capacity, 20% higher efficiency than ordinary air-cooled heat pumps at -10℃; low-temp heating ambient extended from -15℃ (ordinary units) to -25℃.

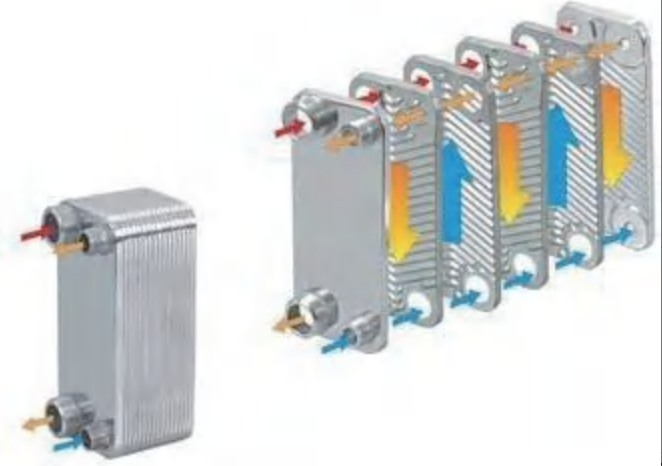

The economizer used in conjunction with the EVI vortex compressor adopts a stainless steel brazed plate economizer. After passing through the economizer,the refrigerant increases the enthalpy difference between the inlet and outlet of the evaporator,effectively improving the refrigeration and heating capacity

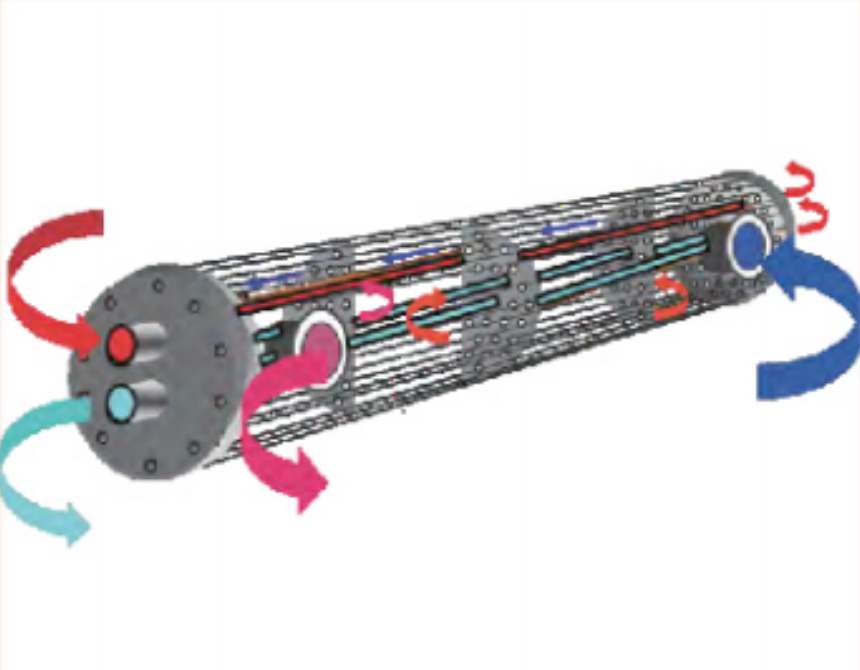

MRAC-LH PLUS series heat pump water-side heat exchanger adopts a new efficient shell-and-tube design with internal high-efficiency internal-thread copper tubes, enhancing water-side and refrigerant-side heat transfer with higher efficiency than ordinary ones. It has a larger internal waterway flow section, resisting clogging and scaling to fully solve old urban heating pipe network fouling. With stronger anti-freezing performance ensuring long-term efficient and stable unit operation
