Description

MTACV-LH Pro低温变频系列模块式风冷(冷水)热泵机组 (MRAC65/130/150ARVLH)

MTACV-LH Pro低温变频系列模块式风冷(冷水)热泵机组
MTACV-LH Pro低温变频系列模块式风冷(冷水)热泵机组
MTACV-LH Pro低温变频系列模块式风冷(冷水)热泵机组
MTACV-LH Pro低温变频系列模块式风冷(冷水)热泵机组

MRACV-LH Pro 变频系列模块式风冷冷水机组(热泵)是蒙特瑞基于“碳达峰”和“碳中和”的发展理念,融合先进变频技术经验、低温热泵与焓增喷射技术推出的高能效产品。该高能效产品将先进的变频技术经验与低温热泵及喷射焓增技术相结合,降低了机组在低环境温度下的制热能力,具有更宽的运行范围,能够满足不同地区的制冷和制热需求。 它可广泛应用于新建和改造的不同规模的工业和民用建筑,如酒店、餐厅、娱乐中心、医院、办公楼、电影院、工厂等。尤其适用于对噪音和周边环境要求高、缺水且不适合安装冷却塔的场合。模块化机组具有安装灵活、分期投资、建设周期短、无需冷却水系统、管道简单、投资适中的特点,成为众多用户青睐的空调系统形式之一。

1.Energy Conservation And Emission Reduction:

MRAC series uses eco-friendly R410A refrigerant (ODP=0, ozone-safe). It delivers maximum cooling capacity per unit volume with lower refrigerant charge than traditional options, cutting greenhouse gas emissions.

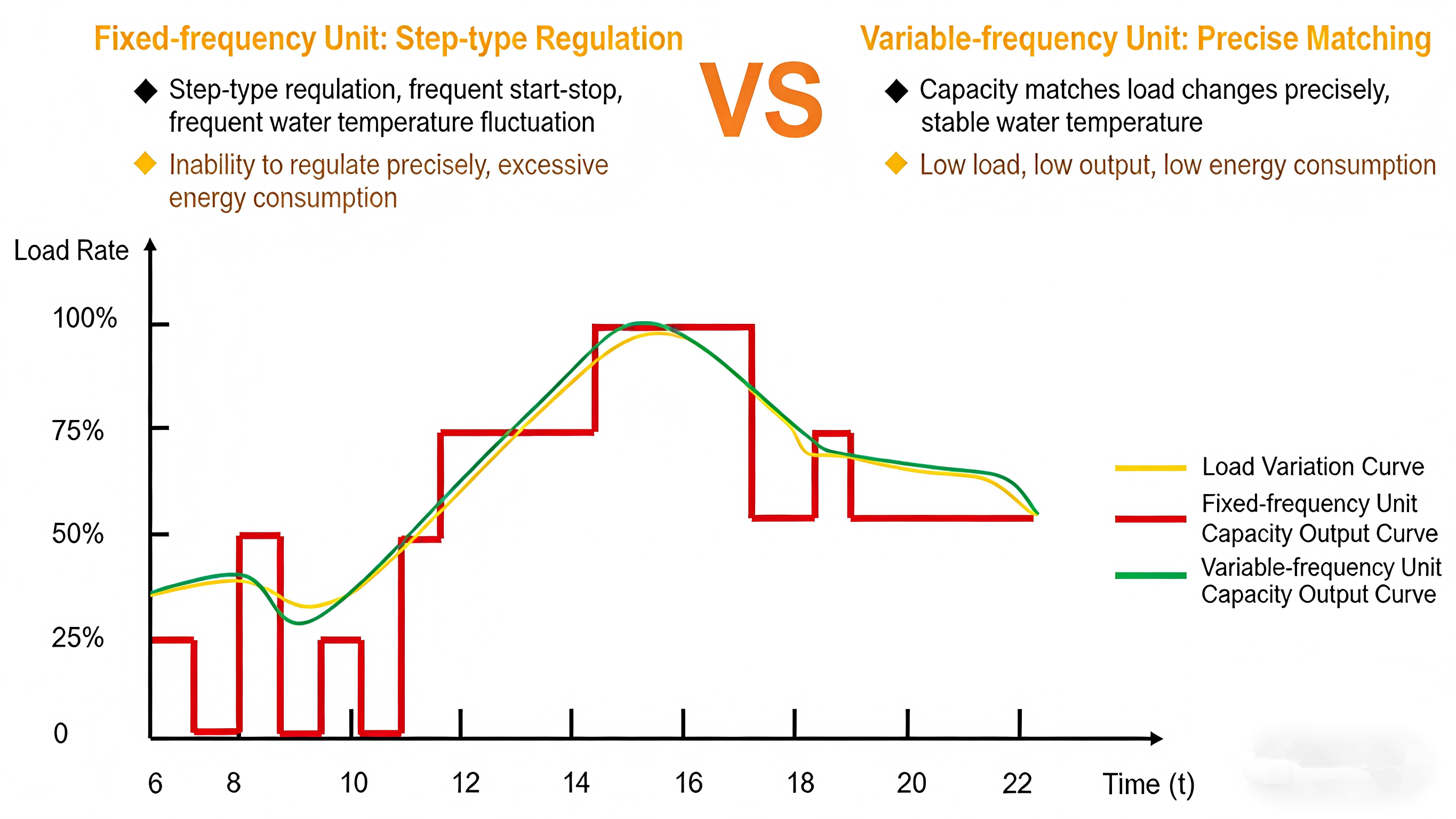

2.Intelligent Stepless Inverter Control:

Advanced DC inverter control enables 30–120Hz (15–100%) stepless capacity adjustment via continuous compressor speed regulation. It precisely matches output to actual load for low-energy low-load operation, widens adjustment range, and ensures precise, stable water temperature control. This eliminates indoor air supply temperature swings caused by frequent compressor cycling, maintains constant water temperature for conventional cooling/heating, optimizes capacity output for load demand, and boosts indoor comfort.

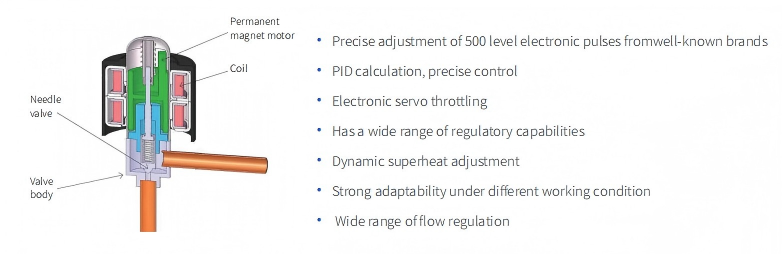

3.Accurate Adjustment, Energy-saving Operation:

Auxiliary jet enthalpy system is controlled by electronic expansion valves, which ensures the safety of the unit, and at the same time, controls the output of the unit's capacity more accurately and efficiently.

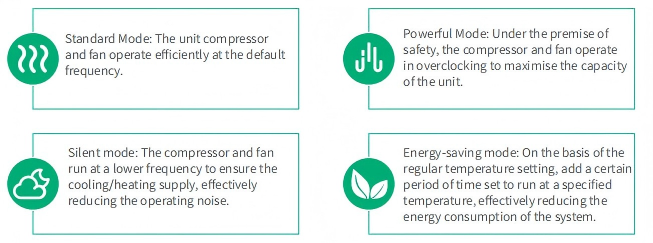

4.Unit peration mode:

MRACV-LH Pro full inverter series heat pump contains four operating modes: standard mode, powerful mode, silent mode, and energy-saving mode.

5.Low Noise:Lower half enclosed structure:

The external part is enclosed with sheet metal, effectively shielding the external transmission of compressor noise. Fan:the optimized combination of efficient fan silent blades and efficient customized motor can achieve perfect performance. The motor is directly connected and the blades have passed strict dynamic and static balance tests.
