MONCHRUI Unitary Cassette DX Splits 4‑way recessed ceiling cassette DX‑split air‑conditioner includes ON‑OFF fixed‑speed and DC‑inverter series, cooling capacity 12000‑60000BTU. Indoor cassette unit is fully recessed into suspended ceiling, only square decorative panel exposed without occupying floor or wall space. 4‑way wide‑angle auto swing louvers deliver even air circulation across whole room.

Equipped with rotary‑type compressor. Heat‑exchanger adopts inner‑grooved copper tube & hydrophilic aluminium fin for self‑cleaning effect and fast defrost‑drainage. Standard wired wall‑mount controller + wireless remote, LED display, timer & dehumidification mode. Optional WIFI mobile remote control. Eco‑friendly R410A refrigerant under T1 climate condition. Flexible power options: single‑phase for small‑medium models, single‑/three‑phase for large capacity. Max refrigerant pipe length up to 20m, elevation difference up to 10m. ISO‑certified factory supports OEM & ODM export customization. Widely used in shopping malls, supermarkets, office buildings, exhibition halls and club premises.

MONCHRUI Unitary Cassette DX Splits 4‑Way Ceiling Cassette DX‑Split Air‑Conditioner｜12K‑60K BTU Commercial Recessed Ceiling Unit

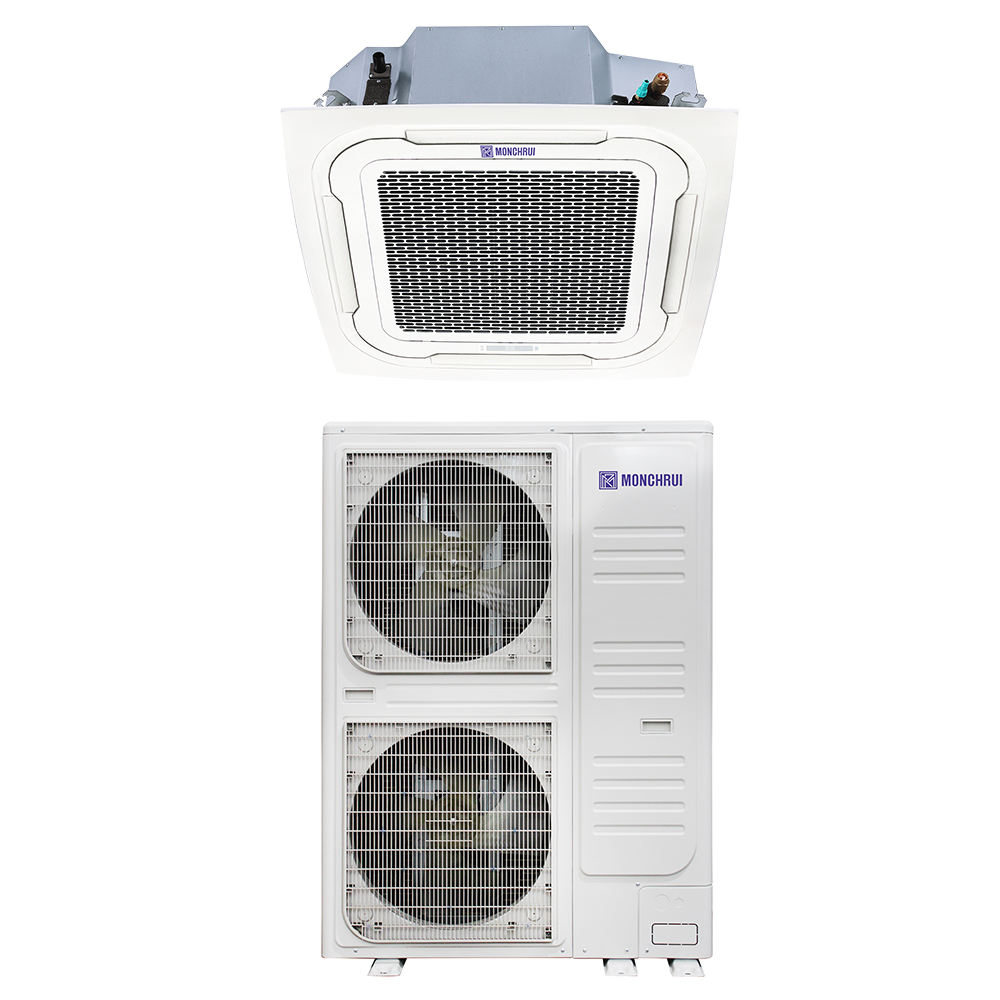

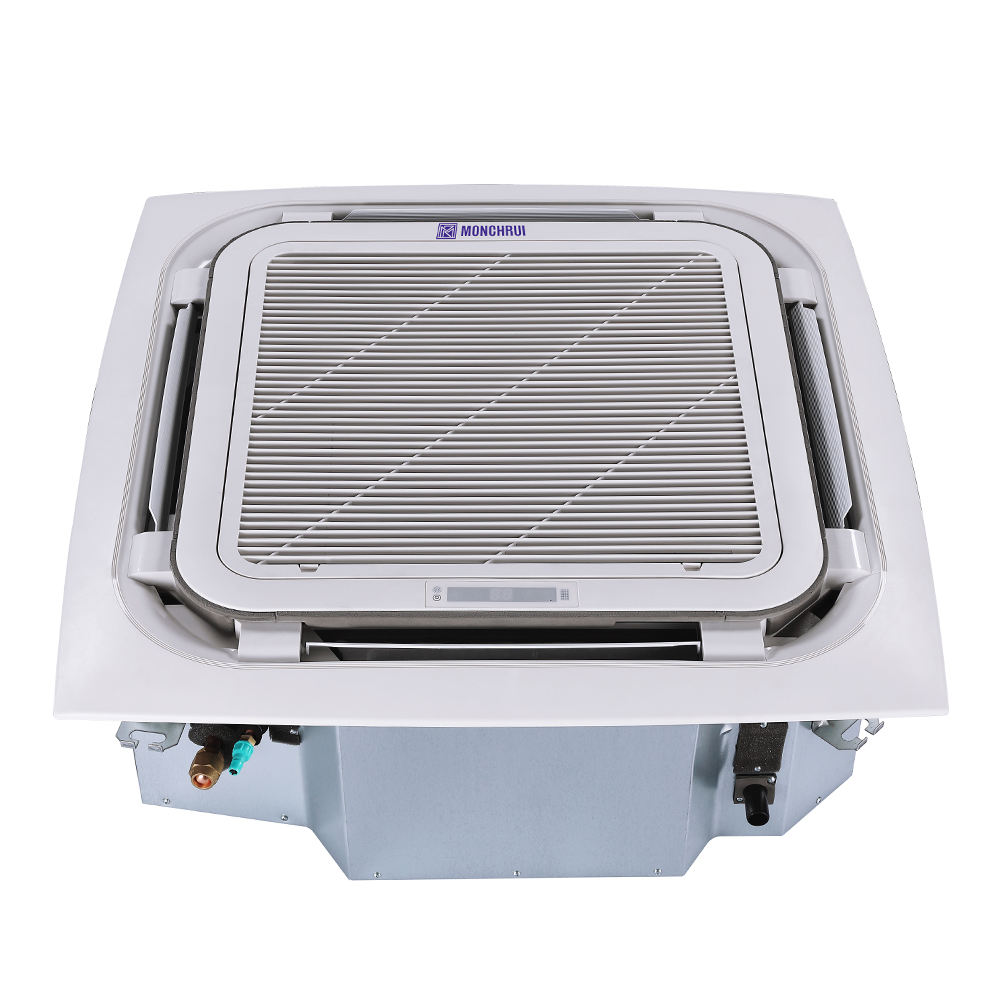

1. Construction: Recessed ceiling‑mount indoor cassette unit with square decorative panel for four‑way air swing, matched with outdoor air‑cooled condensing unit. Main body concealed inside ceiling, only panel exposed without occupying floor space.

2. Core hardware: ON‑OFF models adopt Landa / GMCC rotary compressors; DC‑inverter units use GMCC DC inverter rotary compressors. Heat‑exchanger with inner‑grooved copper tube plus hydrophilic aluminium fin for self‑cleaning & fast defrost drainage. 3‑speed centrifugal fan. Refrigerant R410A, T1 climate class (cooling 18‑48℃, heating ‑7~24℃).

3. Control & features: Standard wired wall‑mount controller + wireless remote. 4‑way auto‑swing louver, dehumidification, timer function, long‑life filter, LED display. WIFI remote control optional for selected models.

4. Electrical specs: 12‑30K BTU single‑phase 220‑240V; 36‑60K BTU single‑phase / three‑phase 380‑415V. Full dataset includes air flow, Hi‑Me‑Lo noise, indoor/outdoor dimension, net/gross weight, max refrigerant pipe length & elevation difference, OD25 condensate drain pipe.

5. Factory qualification: ISO9001/14001/45001 certified, over 50 senior HVAC engineers, export to more than 30 countries, OEM & ODM customization available.

6. Applications: Shopping malls, supermarkets, office buildings, exhibition halls, clubs & meeting rooms, domestic commercial projects & overseas bulk export orders.

On‑Off & Inverter Model Selection

General Hardware & Structural Parameters

Air‑Flow & Noise Reference

Ceiling Cassette DX‑Split Air‑Conditioner Seven Core Product Advantages

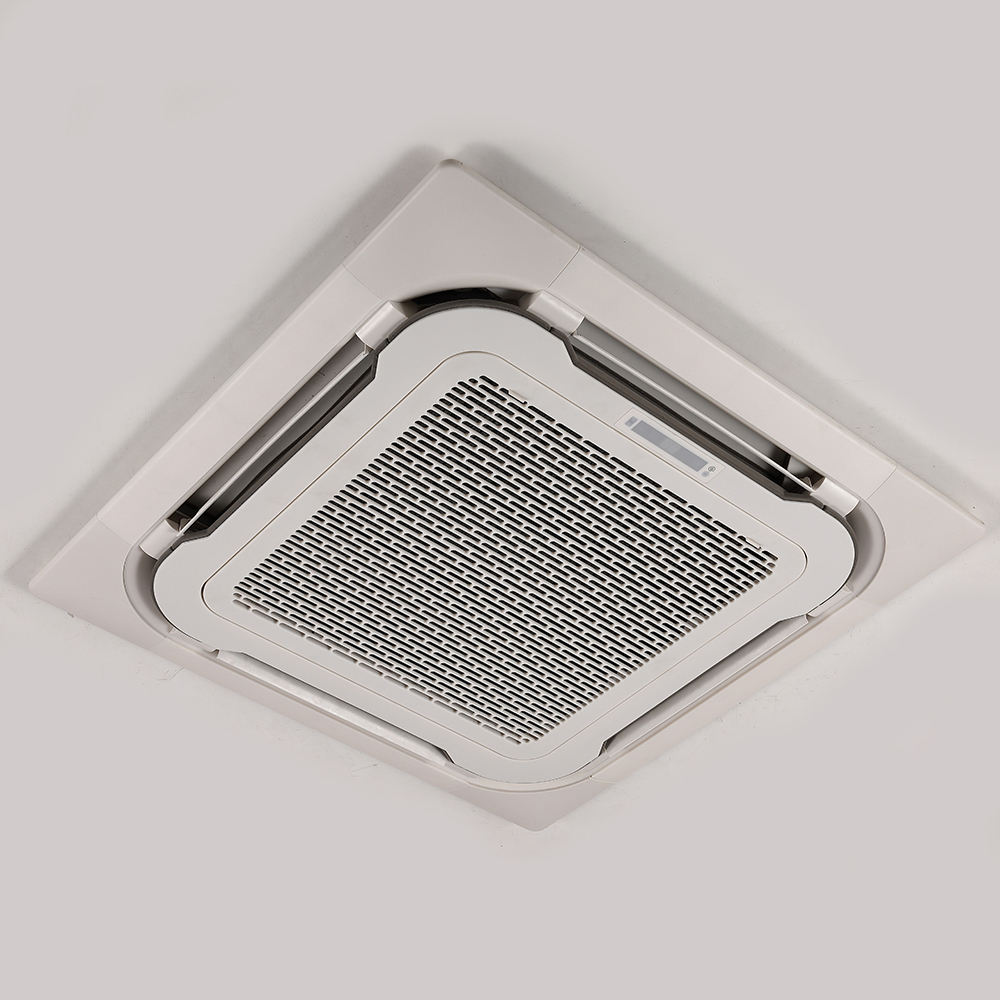

1. Recessed ceiling concealed installation to save commercial space Indoor cassette unit fully embedded inside ceiling, only decorative panel visible. No floor / wall occupation, neat visual effect for commercial sites with high decoration requirements.

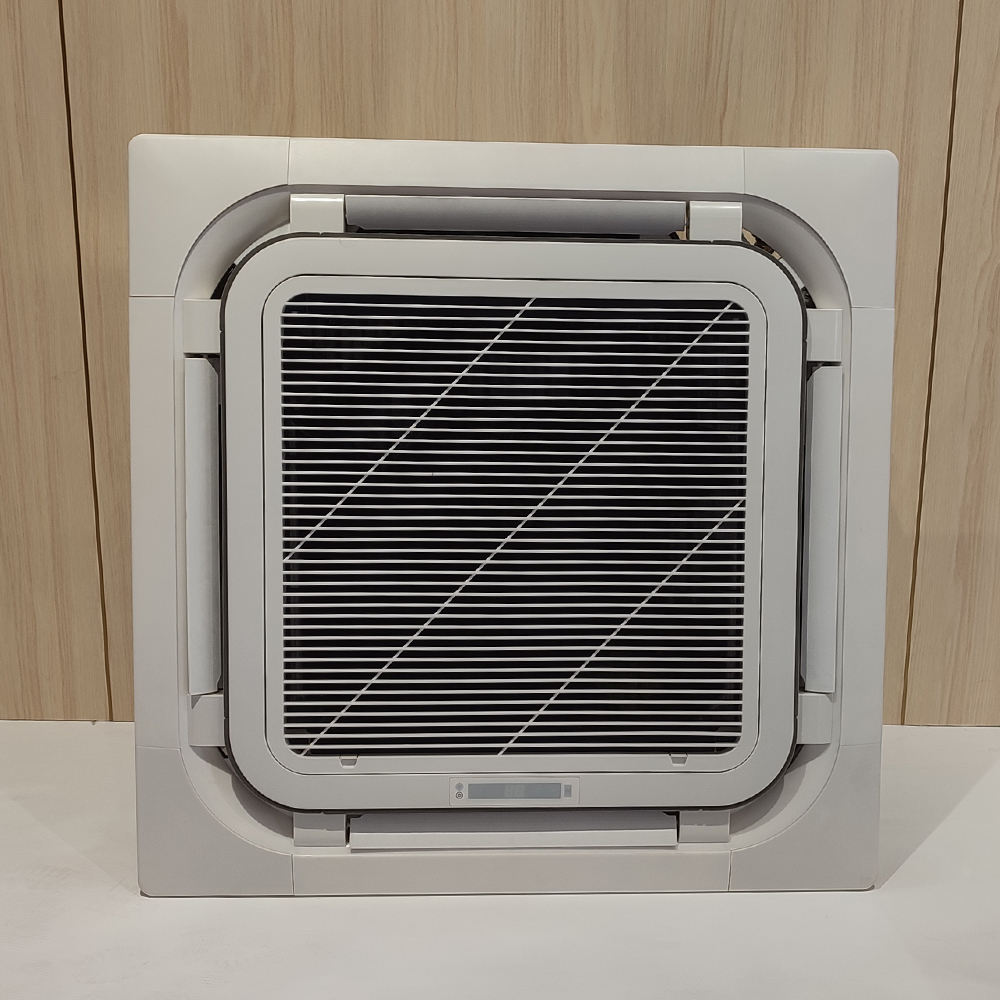

2. 4‑way wide‑angle auto‑swing for uniform room temperature Four directional auto‑swing louvers for 360‑degree circulating air delivery. Cool / warm air reaches every corner without local hot‑cold spots for comfortable human‑occupied zones.

3. Hydrophilic fin heat‑exchanger for self‑cleaning & low maintenance Inner‑grooved copper tube improves heat transfer. Hydrophilic aluminium fin accelerates condensate flow & defrost. Condensed water washes off dust to reduce accumulation and maintenance workload, keep supply‑air clean.

4. Fixed‑speed & inverter dual versions for different‑budget projects Cost‑effective ON‑OFF for budget‑sensitive bulk commercial projects. DC‑inverter realizes fast heating/cooling at startup, stepless capacity modulation under partial‑load with small temperature fluctuation and better energy‑saving performance.

5. Rich control functions for convenient operation Standard wired wall‑panel + wireless remote. Equipped with LED display, timer on/off and independent dehumidification. Optional WIFI module supports mobile remote adjustment, convenient for building centralized management.

6. Flexible power supply & long‑distance piping capability 12‑30K single‑phase; 36‑60K supports single‑/three‑phase. Max pipe length 20m and elevation difference 10m for large‑capacity models, offering great flexibility for outdoor unit layout.

7. Full factory certifications for global OEM / ODM orders ISO9001/14001/45001 certified plant with over 50 HVAC R&D engineers, products exported to more than 30 countries. Custom nameplate, voltage & functions for worldwide bulk commercial orders.

Ceiling Cassette DX‑Split Air‑Conditioner Main Application Scenarios

1. Retail business: Shopping malls, chain supermarkets, brand retail stores;

2. Office & public building: Office buildings, multi‑function meeting rooms, exhibition halls;

3. Leisure premises: Clubs, hotel lobbies, catering halls;

4. Overseas projects: International commercial buildings, bulk OEM & ODM orders.

Ceiling Cassette DX‑Split Air‑Conditioner Installation & Operation Notes

1. Recessed ceiling DX‑split cassette unit. Certified HVAC engineer for sizing, hoisting, piping, vacuum pumping & commissioning is mandatory.

2. Ceiling cut‑out dimension must strictly follow drawing to ensure panel fit tightly and prevent air leakage.

3. Verify power voltage strictly. Large‑capacity models require three‑phase power with reliable earthing protection.

4. Only use R410A refrigerant. Special dedicated service tools required for installation & maintenance.

5. Condensate drain pipe shall maintain downward gradient for smooth drainage to avoid ceiling water leakage risk.

6. Operate strictly within T1 climate: cooling 18‑48℃, heating ‑7~24℃. Do not run continuously beyond working limits.
