ARISTO High Efficiency Circulation Pump Vertical & Horizontal HVAC Chilled Hot Water Centrifugal Pump

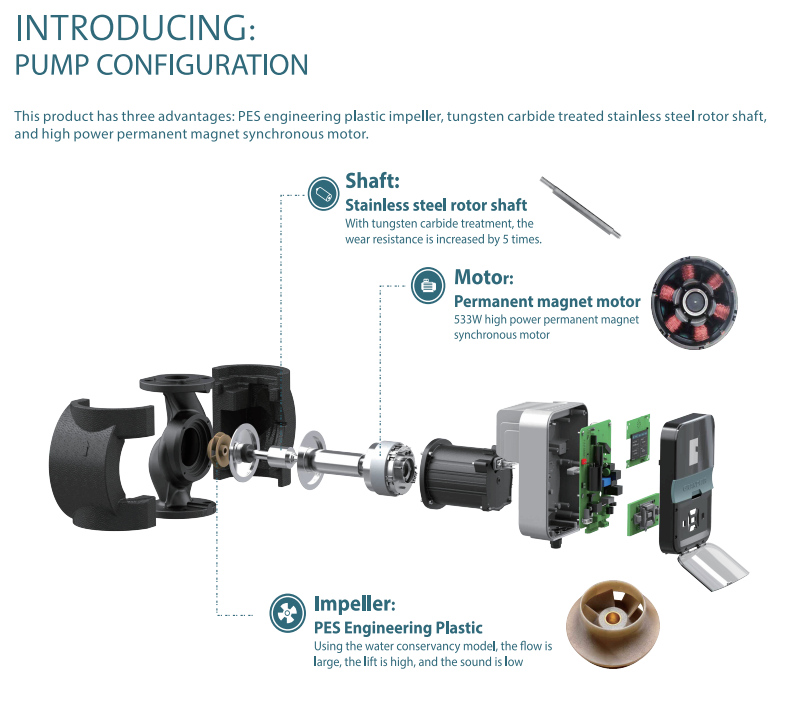

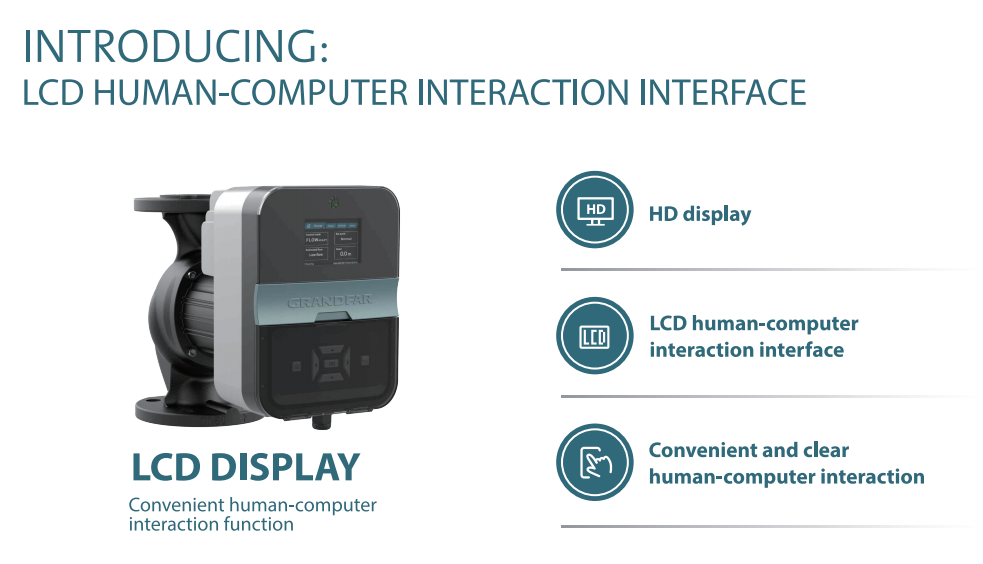

1. Product Overview
ARISTO commercial inline circulation pump is dedicated water circulation equipment for HVAC machine rooms, divided into vertical and horizontal single-stage centrifugal pump series for chilled water, heating hot water & plate heat exchanger media delivery. Adopt coaxial straight pipeline design, can be directly connected to piping without base reconstruction. Equipped with YE3 Class 1 high efficiency motor, IP55 dust & water protection. Optimized hydraulic channel ensures low vibration & low noise for 24/7 non-stop operation. Medium temperature ranges from -15℃ to 110℃, max working pressure 1.6MPa. Cast iron / 304 stainless steel impeller optional, matched with VFD controller, vibration base and other accessories. Widely used in new & energy renovation HVAC projects of hotels, offices, hospitals, malls & factories.
Comparison Vertical VS Horizontal Circulation Pump
Comparison Item | Vertical Inline Pump | Horizontal Inline Pump |
|---|---|---|
Mounting Structure | Vertical motor, straight vertical pipeline | Horizontal B35 base, horizontal installation |
Floor Space | Compact for narrow machine room | Base support for spacious ground |
Maintenance | Top pull-out rotor, no flange disassembly | Rear cover, partial pipe removal |
Power Range | 0.75~90kW | 11~132kW |
Nominal DN Diameter | DN40~DN250 | DN80~DN300 |
Typical Application | Small-medium office & hotel chiller system | Large mall & factory main unit room |

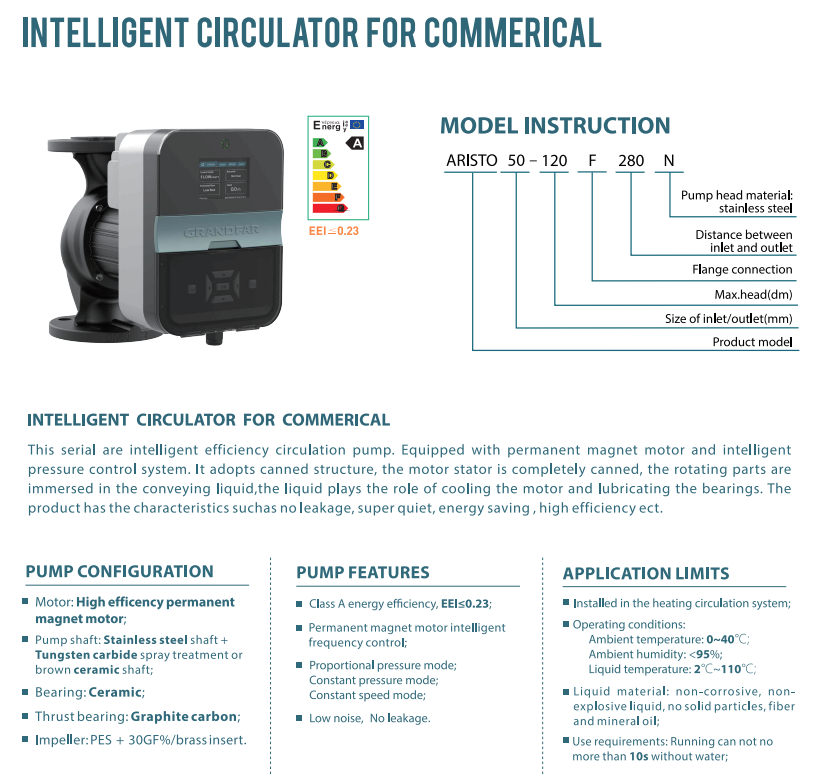

General Basic Technical Specs
Category | Item | Standard Parameter |
|---|---|---|
Power System | Motor Model | YE3 Super High Efficiency 3-Phase Motor |
Insulation Class | F Class | |
Protection Grade | IP55 | |
Power Supply | 380V/50Hz, 60Hz export optional | |
Hydraulic Performance | Medium Temp | -15℃ ~ +110℃ |
Max Working Pressure | 1.6MPa, test pressure 2.1MPa | |
Flow Range | 4 ~ 750 m³/h | |
Head Range | 4.5 ~ 108 m | |
Running Noise | ≤58 dB(A) | |
Mechanical Parts | Pump Casing | Cast Iron (SS optional) |
Impeller Material | Cast Iron / 304 Stainless Steel | |
Bearing Brand | SKF Silent Bearing | |
Mechanical Seal | Import Burgmann Standard Seal | |
Operation | Support 24h Continuous Running |
Optional Accessory List
Accessory Name | Function Description |
|---|---|
VFD Frequency Controller | Auto speed adjust via DP sensor, 15%~30% HVAC energy saving |
Full SS Wetted Parts | For softened water & weak corrosive medium |
Rubber Vibration Base | Reduce vibration & noise transmission |
Flange Reducer | Match different pipe size for renovation |
Dry Run Protection Relay | Auto stop when water shortage to protect pump |
Differential Pressure Module | Link with building BMS for speed control |
2 Seven Core Product Advantages
Top Pull-Out Design, No Pipe Disassembly For Maintenance Optimized rotor pull-out structure, inspect mechanical seal & clean impeller without removing inlet/outlet flanges, cut maintenance time by 70%, ideal for hospital & malls with non-stop water demand.
YE3 Class 1 High Efficiency Motor Save Power Yearly National Grade 1 energy efficiency, save over 20% electricity annually compared with traditional Y-series pumps, obvious energy benefit for multi-pump large machine rooms.
Low Noise CFD Optimized Hydraulic Channel CFD simulated closed impeller, double dynamic balance + SKF silent bearing, full load noise ≤58dB, no noise disturbance near offices & ward areas.
Wide Temp Adapt For Cooling & Heating All Year Suitable for low temp chilled water & high temp heating water, cover -15℃ anti-freeze condition up to 110℃ heat exchange medium.
Built-In Multi Safety Protection Motor overload, phase loss, overheat & stall protection integrated; optional dry run relay auto shut down to avoid seal & impeller burnout.
Dual Impeller Material For Different Water Quality Standard cast iron for regular tap water; 304 stainless steel for softened & slightly corrosive water, no rust blockage during long operation. 7 Two Mounting Types Fit All Renovation Projects Vertical & horizontal options, no full pipeline reconstruction required for old buildings. Vibration base & VFD accessories one-stop supporting.
3 Standard Installation Requirements
Piping: Install flexible rubber joints at inlet & outlet, keep straight pipe ≥5 times diameter before & after pump;
Fixing: Vertical pump connect vertical pipe directly, horizontal pump must match vibration base;
Electrical: Independent power supply for VFD model, add filter reactor to reduce interference;
Medium: Clean water / softened water only, Y-strainer installed at front to block hard sediment;
Anti-Freeze: Drain pump cavity for long winter shutdown, heat tracing accessory optional.
4 Main Application Scenarios
Commercial Buildings: High-rise offices, star hotels, grade A hospitals, shopping mall chilled & heating water circulation;
Industrial Plants: Production chiller & plate heat exchanger water system;
Renovation Works: Old low-efficiency pump energy replacement project;
Supporting Equipment: AHU, air-cooled & water-cooled unit matching circulation system.
5 Routine Maintenance Guide
Monthly: Check noise, vibration & inlet/outlet pressure difference;
Quarterly: Clean front strainer, inspect mechanical seal leakage;
Yearly: Refill bearing grease, test motor insulation resistance;
VFD Pump: Calibrate differential linkage parameter regularly to avoid low-load idle operation.
