MONCHRUI . Your reliable HVAC partner!

Name: Full DC Inverter Direct Expansion Unit
Brand: Monchrui
SKU: 2500~150000m³/h

Description

Full DC Inverter Direct Expansion Unit (2500~150000m³/h)

MRDX air handling unit integrates air supply, cooling, heating, humidification, dehumidification, air purification and electric control. It's direct expansionahu with multiple advantages such as simple system composition, easy installation and low cost. It can be used in a wide range of clean technology field requiring of small high-clean spaces of tens to hundreds of square.

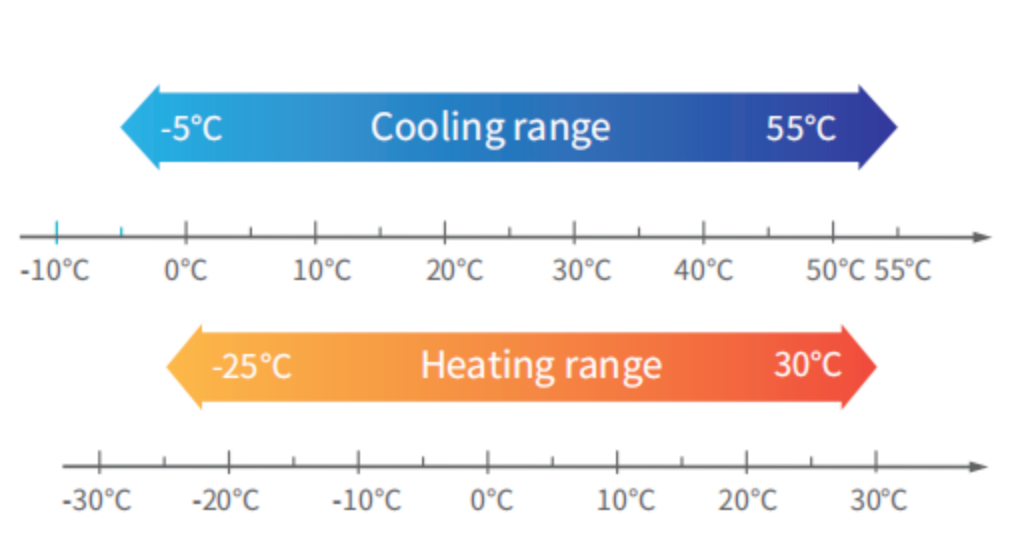

1.Wide Outdoor Operation Range:

Due to EVI technology, MAX series still has 85% of rated capacity even in -15℃.

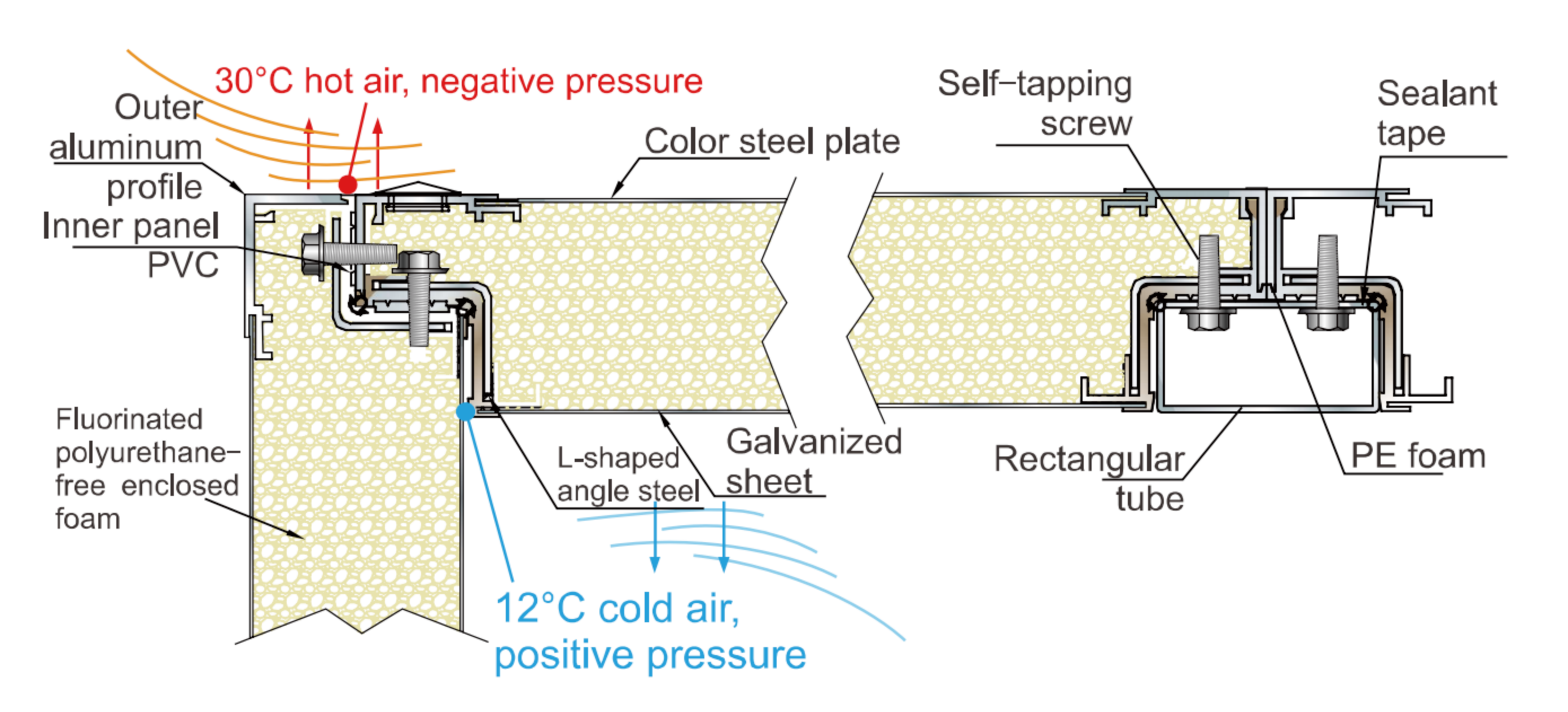

2.MR patented cold bridge-free cabinet structure:

MR combined cabinet adopts the latest European cold bridge-free line contact inner frame structure, featuring no cold leakage parts. Its marine-grade sharp line contact seal tightly connects the built-in frame with overall foam for a high-strength structure, and the thermal insulation meets European T2 standard to fully eliminate cold bridge cooling loss.

3.Complete function：

MRDX units are available in multiple types (cooling-only, heat pump, constant temperature & humidity, purification, 100% fresh air, etc.), which can satisfy diverse application requirements and integrate with other functional sections to realize cooling, heating, humidification, air purification, noise reduction, fresh air dehumidification and more.

4.Black Box Technology：

This function can store data for over a year, allowing users to analyze the cause of the fault by reviewing the data.
