MONCHRUI Unitary DX Splits floor‑standing DX split air‑conditioner is large‑space commercial vertical cabinet cooling‑heating unit, including ON‑OFF fixed‑speed and DC inverter series, cooling capacity 36000‑100000 BTU, specially designed for workshops, exhibition halls, supermarkets and large meeting rooms. Equipped with rotary compressor. Heat exchanger adopts inner‑grooved copper tube & hydrophilic aluminium fin with evaporator self‑cleaning function. 3‑speed centrifugal fan delivers multi‑angle long‑distance air throw up to 15 meters. Adopt eco‑friendly R410A refrigerant under T1 climate working condition. Standard wired wall‑mount controller plus wireless remote. Optional WIFI mobile remote control and UVC UV‑C sterilization module for disinfection of multiple pathogenic bacteria. Flexible power options: small‑medium capacity single‑phase, large‑capacity 380‑415V three‑phase power. Max refrigerant pipe length up to 20‑50m. ISO‑certified factory supports OEM & ODM export customization, widely used for domestic & oversea industrial and commercial projects.

MONCHRUI Unitary DX Splits Floor‑Standing DX Split Air‑Conditioner｜36K‑100K BTU Commercial Vertical Cooling‑Heating Unit

1. Product lines: ON‑OFF fixed‑speed and DC inverter series, capacity 36K‑100K BTU. 36K fixed‑speed supports single‑/three‑phase; 42‑60K fixed‑speed three‑phase. Inverter 36‑60K single‑phase, 48‑100K three‑phase. Refrigerant R410A, T1 climate class (cooling 18‑48℃, heating ‑7~24℃).

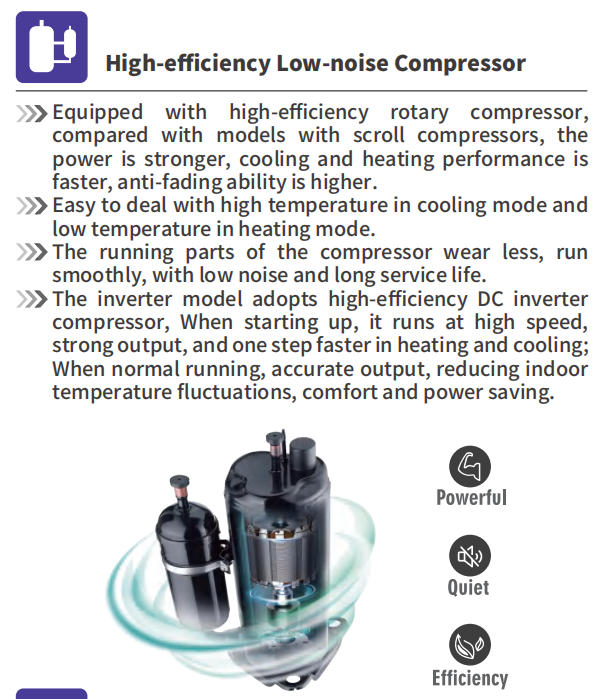

2. Core hardware: ON‑OFF models adopt Landa rotary compressor; inverter models adopt GMCC DC inverter rotary compressor. Inner‑grooved copper tube + hydrophilic aluminium fin heat exchanger with evaporator self‑cleaning function. 3‑speed centrifugal fan, max 15‑meter multi‑angle long‑distance air throw. Vertical floor‑standing indoor cabinet unit.

3. Control & options: Standard wired wall‑mount controller + wireless remote. Optional WIFI mobile remote control, UVC UV‑C sterilization module to kill E. coli, mycobacterium tuberculosis, salmonella etc.

4. Performance data: Cooling & heating capacity, power input, current, EER / COP, air flow, 3‑speed noise, indoor/outdoor dimension, net & gross weight. Max refrigerant pipe length 20‑50m, elevation difference 10‑30m, condensate drain pipe OD25mm.

5. Factory qualification: ISO9001/14001/45001 certified, over 50 senior HVAC engineers, export to 30+ countries, OEM & ODM customization available.

6. Applications: Workshops, exhibition halls, supermarkets, gymnasiums, large meeting rooms, domestic commercial & oversea bulk export projects.

ON‑OFF & Inverter Model Selection

General Hardware & Structural Parameters

Air‑Flow & Noise Reference

Floor‑Standing DX Split Air‑Conditioner Seven Core Product Advantages

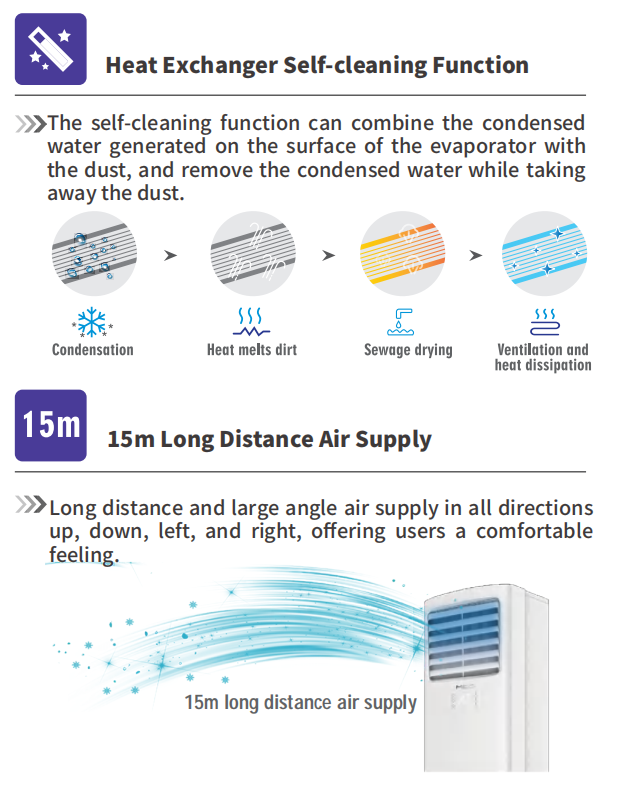

1. 15‑meter multi‑angle long‑distance air supply for large spaces High‑power 3‑speed centrifugal fan with multi‑direction air swing, maximum throw distance up to 15m. Deliver even temperature for workshops, exhibition halls and large shopping malls without hot/cold dead zones.

2. Evaporator self‑cleaning for low maintenance & clean airflow Self‑clean cycle uses condensate water to flush off dust and dirt from fin surface and drain away. Reduce dust accumulation and manual cleaning workload, keep supply air clean.

3. Two versions for budget & comfort requirements Cost‑effective ON‑OFF fixed‑speed for budget‑sensitive bulk projects. DC inverter rotary compressor provides fast cooling / heating at startup, stepless capacity modulation under partial‑load, small temperature swing and good energy‑saving performance.

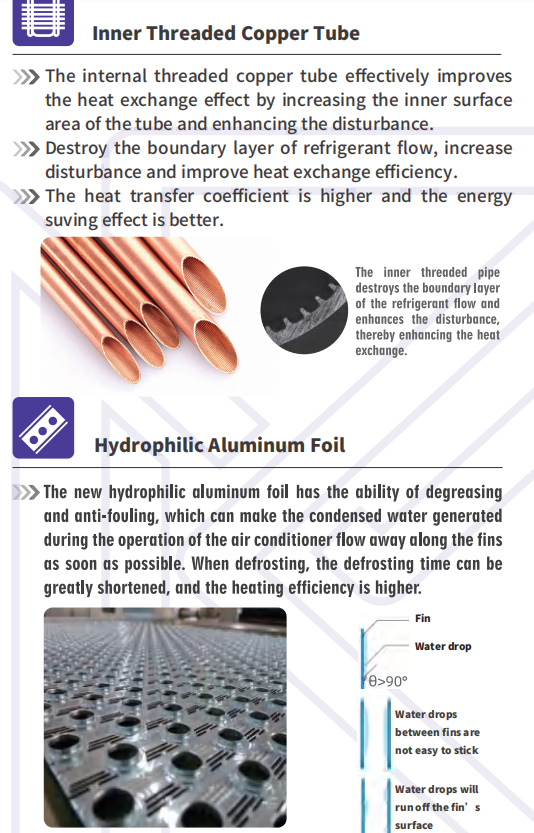

4. Premium heat‑exchange components for stable wide‑range T1 operation Inner‑grooved copper tube enhances heat transfer efficiency. Hydrophilic aluminium fin accelerates defrost & condensate drainage. Good adaptability for high‑temp cooling and low‑temp heating for year‑round commercial & industrial continuous operation.

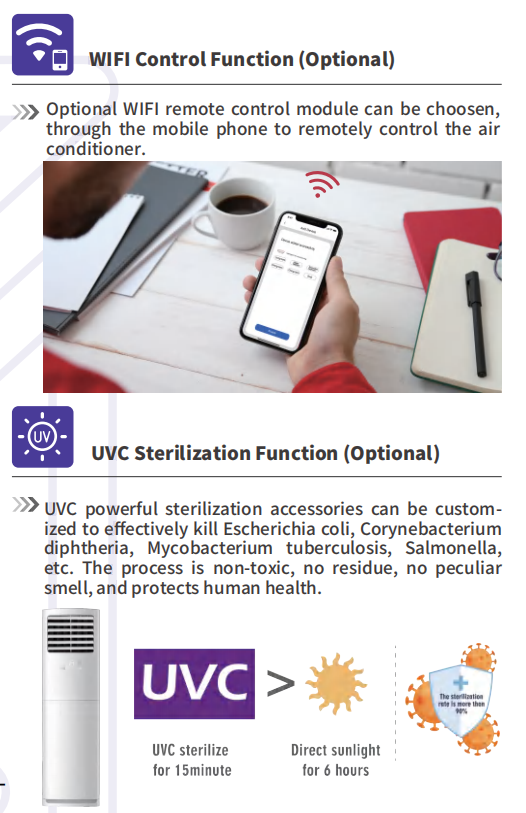

5. Smart optional functions to improve indoor air hygiene Standard dual‑control of wired panel + wireless remote. Optional WIFI for mobile remote operation. UVC sterilization suppress E. coli, mycobacterium tuberculosis, salmonella for enclosed large‑volume premises.

6. Flexible power supply & long refrigerant piping capability 36K supports single‑/three‑phase; 42‑100K large‑capacity models adopt three‑phase power. 100K inverter unit supports pipe length up to 50m and elevation difference 30m for flexible outdoor unit placement.

7. Full factory certifications for global OEM / ODM orders ISO9001/14001/45001 certified plant with over 50 HVAC R&D engineers, products exported to more than 30 countries. Custom nameplate, voltage and functions available for worldwide bulk commercial & industrial orders.

Floor‑Standing DX Split Air‑Conditioner Main Application Scenarios

1. Industrial workshops: Production plant & warehouse large‑area cooling‑heating;

2. Commercial buildings: Large exhibition halls, supermarkets, gymnasiums;

3. Conference venues: Extra‑large meeting rooms & multi‑function auditoriums;

4. Overseas projects: International commercial & industrial sites, bulk OEM / ODM orders.

Floor‑Standing DX Split Air‑Conditioner Installation & Operation Notes

1. Floor‑standing split unit. Require certified HVAC engineer for sizing, installation, vacuum pumping and commissioning.

2. Verify power voltage strictly. Large‑capacity models require three‑phase power and reliable earthing protection.

3. Only use R410A refrigerant, special dedicated service tools are mandatory for installation and maintenance.

4. Condensate drain pipe shall maintain downward gradient for smooth drainage to avoid indoor water leakage.

5. Operate within T1 climate range: cooling 18‑48℃, heating ‑7~24℃. Do not run continuously beyond working limits.
