MRAC-LH High Capacity Modular Air Cooled Chiller (Heat Pump) (MRAC300/450/600ARLH)
Modular air-cooled cold water (heat pump) unitsare high-energy products launched by MONCHEUI company with the developmentconcept of "carbon peaking"and "carbon neutrality",combined with low-temperature heatpumps and jet enthalpy increasing technology.The low ambient temperature of the unit reducesheat dissipation and has a wider operating range,which can meet the refrigeration and heatingneeds of various regions. It can be widely used in new and renovated industrial and civil buildings, such as hotels, hotels,entertainment centers, cinemas,factories,supermarkets,andother places. It is especially suitable for places with high noise and environmental requirements.water scarcity, and unsuitable for installing cooling water towers. The modular machine has flexibleinstallation, can be invested in stages, and has a short constructi.
The unit adopts effcient and environmentally friendly refrigerantR410A, which is chlorine free and will not damage the ozonelayer (ODP=0).

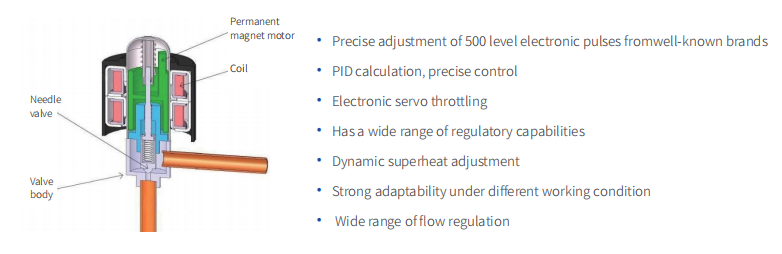

Auxiliary jet enthalpy system is controlled by electronic expansion valves, which ensures the safety of the unit, and at the same time, controls the output of the unit's capacity more accurately and efficiently.

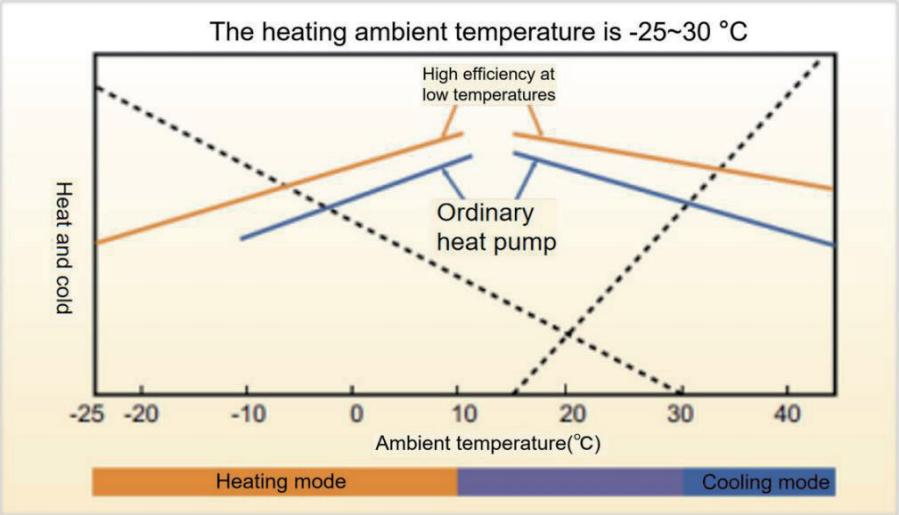

The unit boosts low-temp heating capacity, 20% higher efficiency than ordinary air-cooled heat pumps at -10℃; low-temp heating ambient extended from -15℃ (ordinary units) to -25℃.

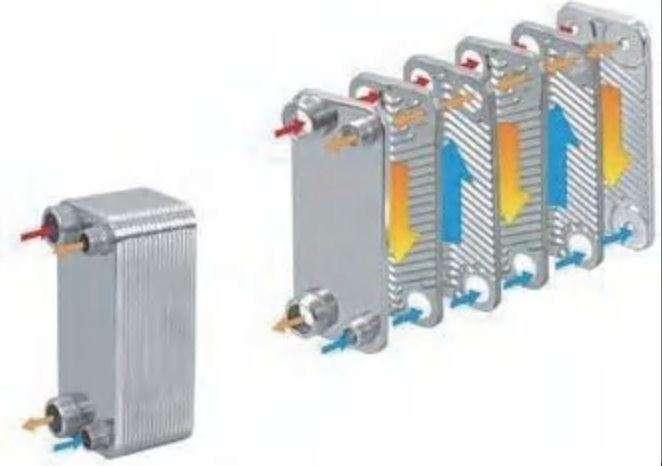

The economizer used in conjunction with the EVI vortex compressor adopts a stainless steel brazed plate economizer. After passing through the economizer,the refrigerant increases the enthalpy difference between the inlet and outlet of the evaporator,effectively improving the refrigeration and heating capacity

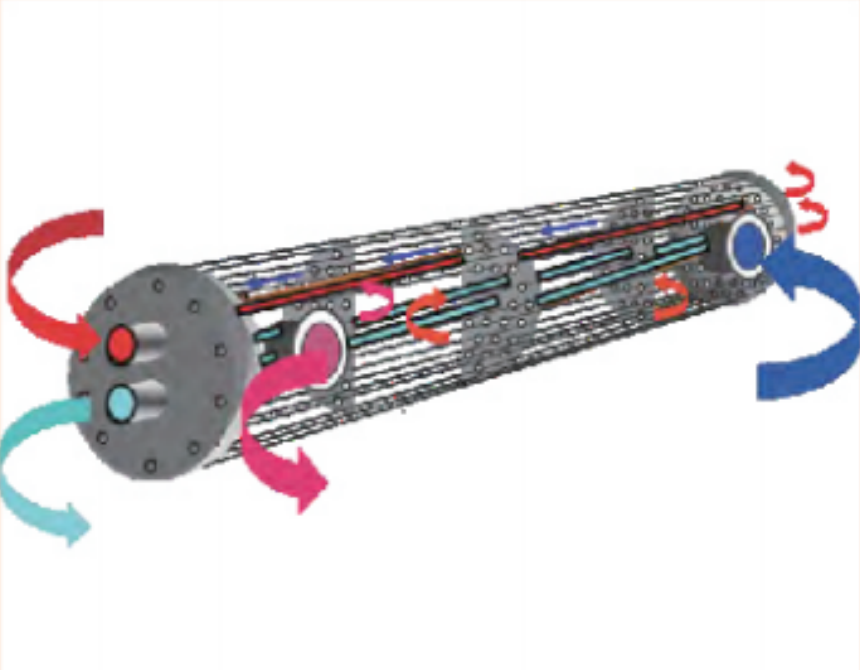

MRAC-LH PLUS series heat pump water-side heat exchanger adopts a new efficient shell-and-tube design with internal high-efficiency internal-thread copper tubes, enhancing water-side and refrigerant-side heat transfer with higher efficiency than ordinary ones. It has a larger internal waterway flow section, resisting clogging and scaling to fully solve old urban heating pipe network fouling. With stronger anti-freezing performance ensuring long-term efficient and stable unit operation
