MRACV-LH Pro Low Ambient Inverter Modular Air Cooled Chiller (Heat Pump) (MRAC65/130/150ARVLH)
MRACV-LH Pro Inverter series Modular Air Cooled Chiller(Heat Pump)is a high energy-efficiency product launched by MONCHRUI with the development concepts of "Carbon Peak" and "Carbon Neutral", the fusion of advanced inverter experience, the combination of low-temperature heat pump and enthalpy-increasing jet technology. The high energy-efficiency products are launched by combining advanced inverter experience with low-temperature heat pump and jet enthalpy technology. The low ambient temperature heat generation capacity of the unit is reduced, and it has a wider operating range, which can meet the cooling and heating needs of various regions. It can be widely used in newly built and reconstructed industrial and civil buildings of different sizes, such as hotels, restaurants, entertainment centers, hospitals, restaurants, office buildings, cinemas, factories, etc. It is especially suitable for the occasions with high requirements on noise and surrounding environment, lack of water and unsuitable for the installation of cooling water towers. Modular unit has the flexibility of installation, phased investment, and construction cycle is short, no cooling water system, piping is simple, moderate investment, become one of the air conditioning system forms preferred by many users.
MRAC series uses eco-friendly R410A refrigerant (ODP=0, ozone-safe). It delivers maximum cooling capacity per unit volume with lower refrigerant charge than traditional options, cutting greenhouse gas emissions.

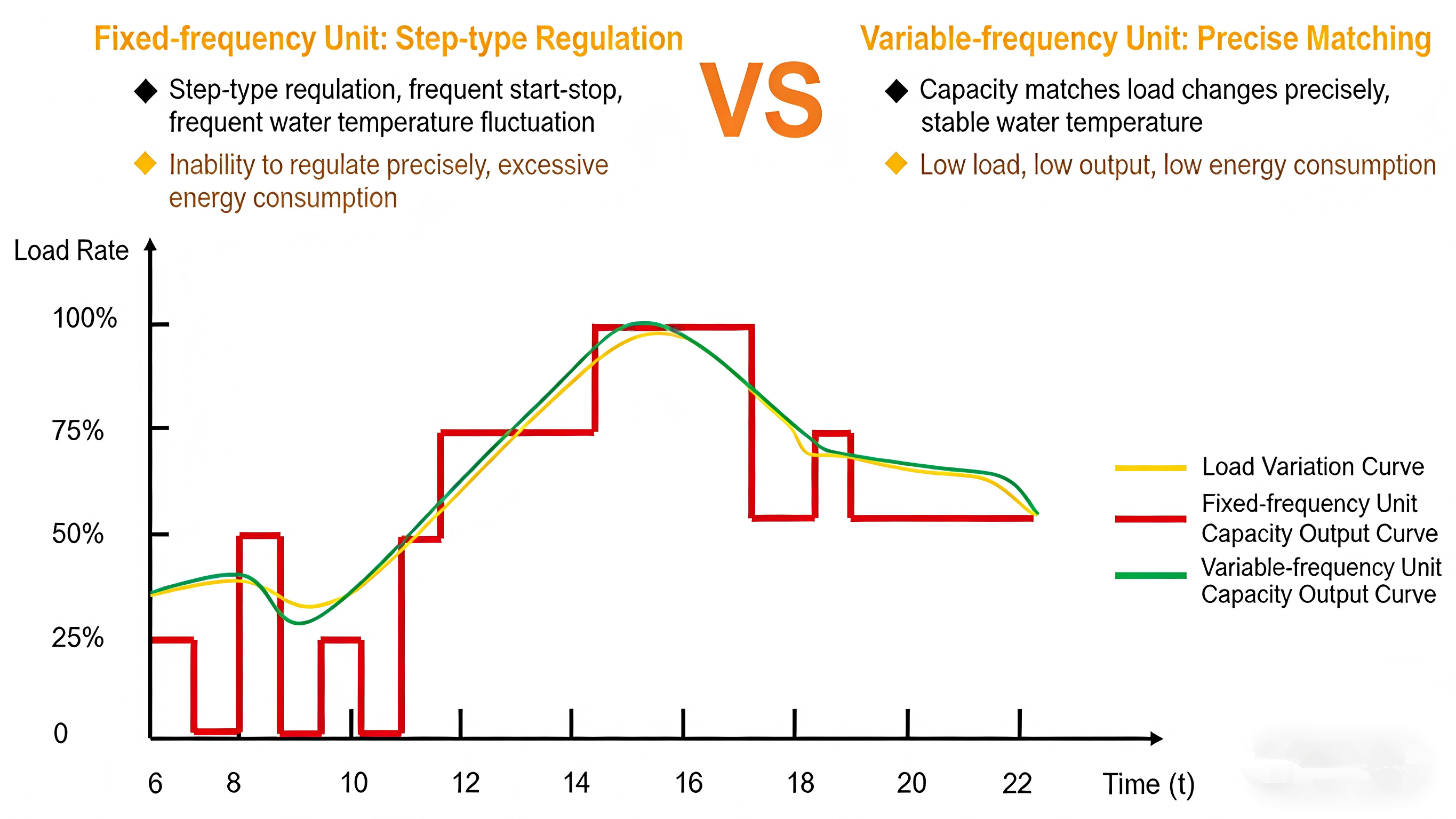

Advanced DC inverter control enables 30–120Hz (15–100%) stepless capacity adjustment via continuous compressor speed regulation. It precisely matches output to actual load for low-energy low-load operation, widens adjustment range, and ensures precise, stable water temperature control. This eliminates indoor air supply temperature swings caused by frequent compressor cycling, maintains constant water temperature for conventional cooling/heating, optimizes capacity output for load demand, and boosts indoor comfort.

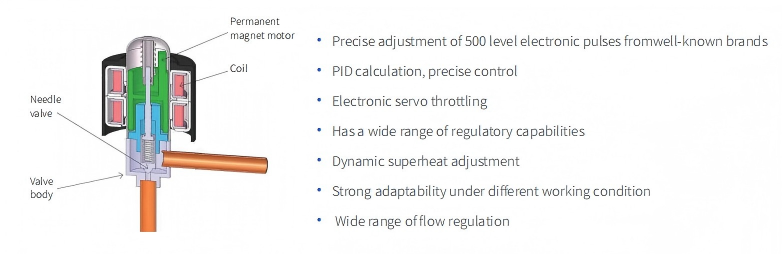

Auxiliary jet enthalpy system is controlled by electronic expansion valves, which ensures the safety of the unit, and at the same time, controls the output of the unit's capacity more accurately and efficiently.

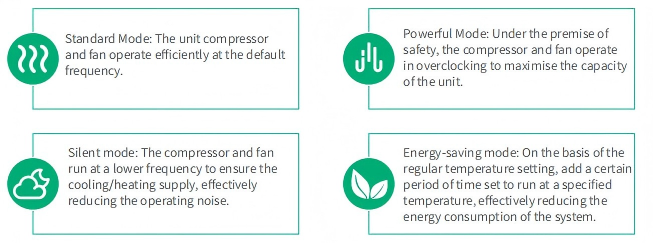

MRACV-LH Pro full inverter series heat pump contains four operating modes: standard mode, powerful mode, silent mode, and energy-saving mode.

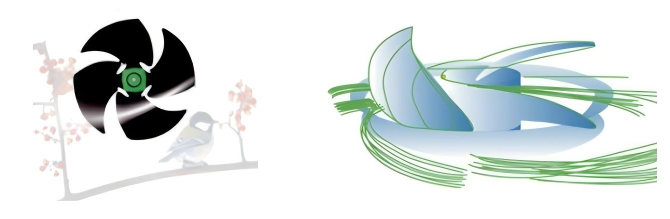

The external part is enclosed with sheet metal, effectively shielding the external transmission of compressor noise. Fan:the optimized combination of efficient fan silent blades and efficient customized motor can achieve perfect performance. The motor is directly connected and the blades have passed strict dynamic and static balance tests.
