MRAC-A PLUS Standard Series Modular Air Cooled Chiller (Heat Pump) (MRAC65/130AR)
MRAC-A Plus Standard Series Modular Air Cooled Chiller (Heat Pump) absorbs the essence of industry technology, listens to the application experience of product owners, and meets the user's requirements for product efficiency, safety, intelligence, comfort and affordability to the greatest extent. It can be widely used in new and reconstructed large and small industrial and civil buildings, such as hotels, entertainment centers, hospitals, restaurants, MRAC-A Plus Standard Series Modular Air Cooled Chiller (Heat Pump) office buildings, cinemas, factories, supermarkets and other places, especially suitable for noise and surrounding environment with high requirements, lack of water and not suitable for installation of cooling towers.
The unit uses eco-friendly, chlorine-free R410A (ODP=0). Less refrigerant is needed under the same cooling condition, boosting efficiency and reducing weight.

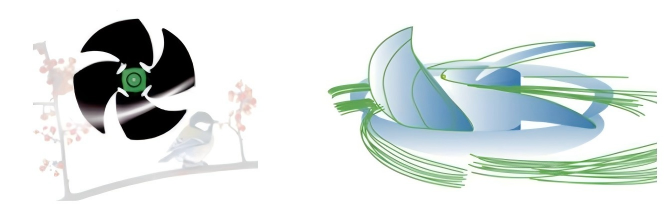

Lower half enclosed structure: The external part is enclosed with sheet metal, effectively shielding the external transmission of compressor noise. Fan:the optimized combination of efficient fan silent blades and efficient customized motor can achieve perfect performance. The motor is directly connected and the blades have passed strict dynamic and static balance tests.

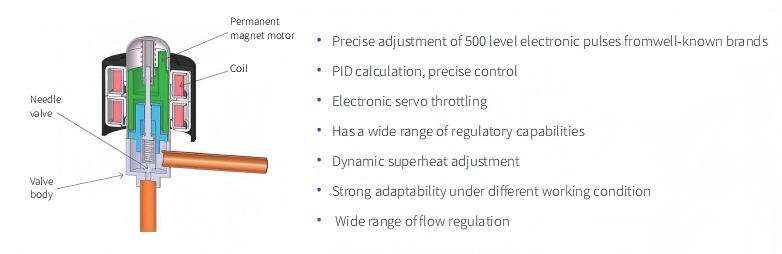

MRAC air-cooled modular units use imported 500-level PMV electronic pulse precision regulation (vs. traditional thermal expansion valves) for PID control of electronic expansion valves. This ensures real-time dynamic matching, stable load operation, environmental adaptability, and oscillation elimination, achieving accurate water temperature control, uniform indoor temperature, and enhanced comfort

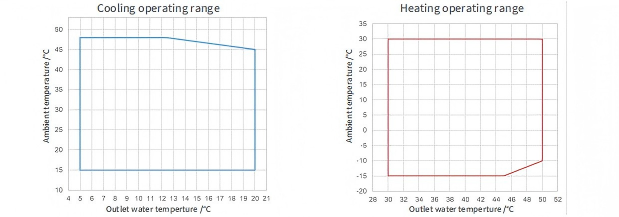

The unit has undergone strict long-term testing according to national standards, and can operate normally whether it is cooled in hot weather at 48 ℃ or heated in severe cold weather at -15 ℃.
