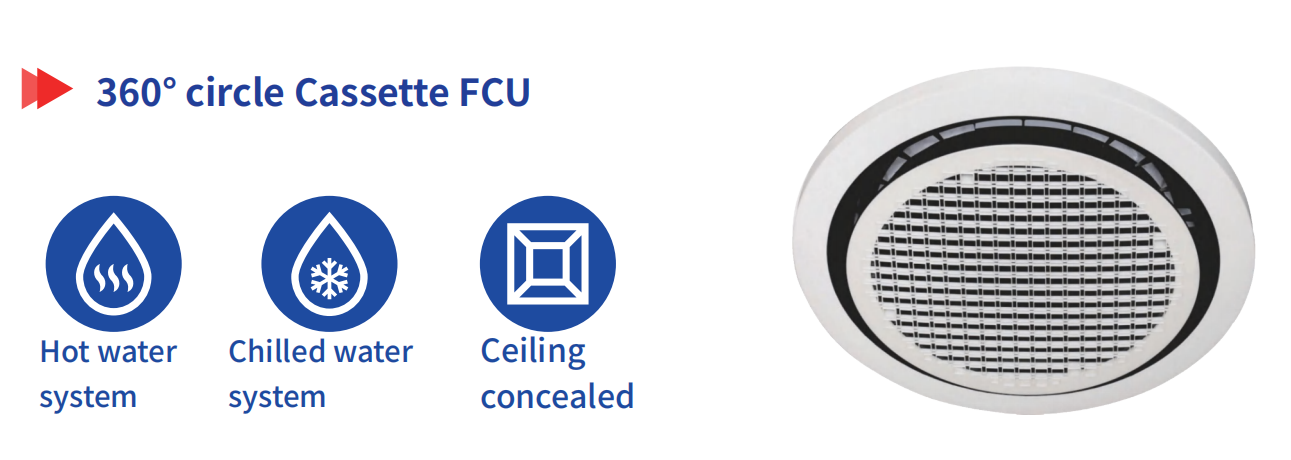

MONCHRUI Round FCU circular ceiling‑recessed fan‑coil unit is concealed ceiling‑mount cooling‑heating terminal specially for chilled‑hot‑water central air‑conditioning system. It works together with chiller & boiler system. Main unit is fully hidden inside suspended ceiling, only stylish circular decorative panel exposed for elegant interior appearance.

Airflow range 800‑2400CFM, cooling capacity 2.5‑12.5kW. 2‑row / 3‑row heat‑exchange coil optional. Hydrophilic aluminium fin with self‑cleaning function. 3‑speed centrifugal fan (High / Medium / Low). Standard wired wall thermostat. Optional wireless remote, WIFI mobile remote control and UVC sterilization. Condensate lift‑pump optional for ceiling installation without natural drain slope. Built‑in float‑type water‑leakage alarm switch to prevent ceiling water damage. Single‑phase 220‑240V 50/60Hz, T1 working condition. OEM & ODM customization available. Widely used in hotel rooms, offices, chain shops, clubs and small meeting‑rooms for commercial water‑chiller HVAC projects.

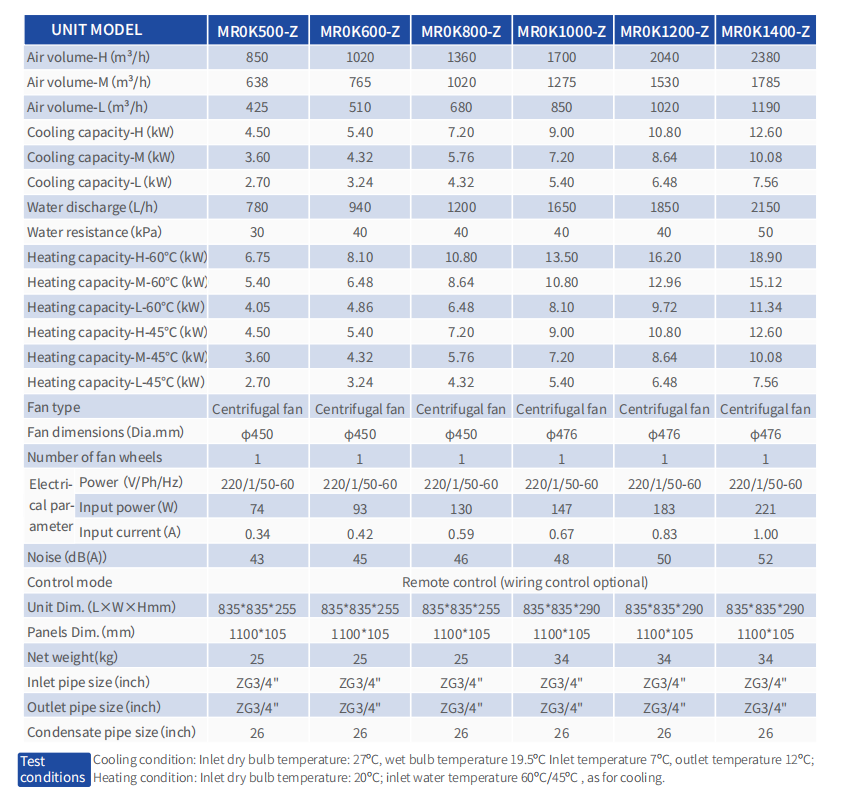

Round FCU Model Selection

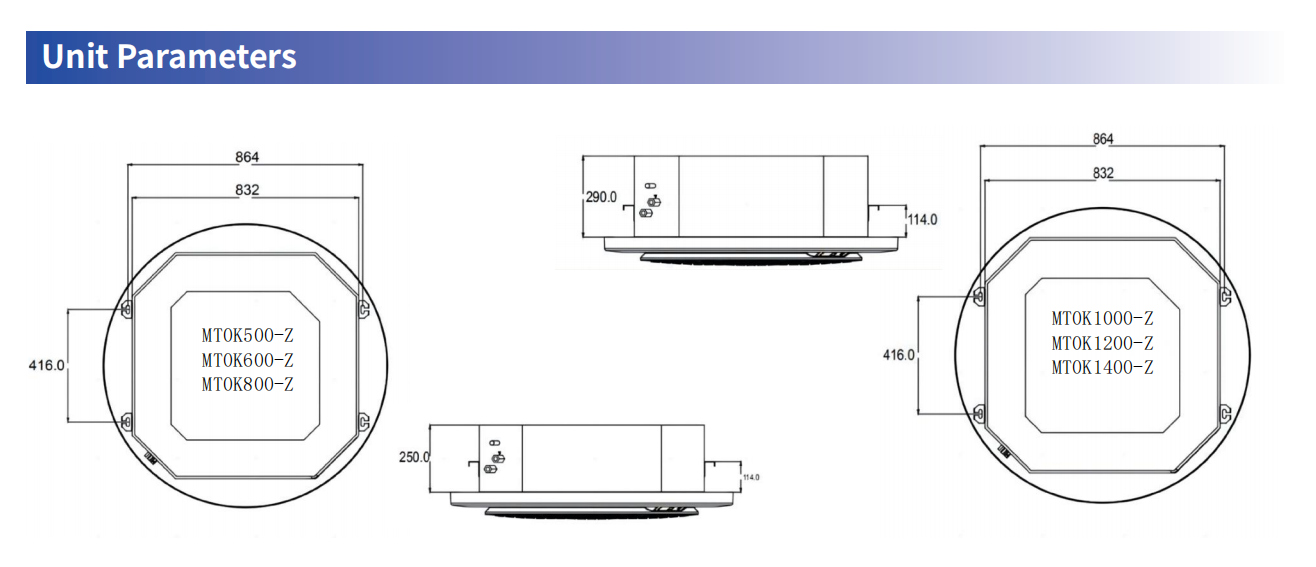

General Hardware & Functional Parameters

Noise Reference dB(A)

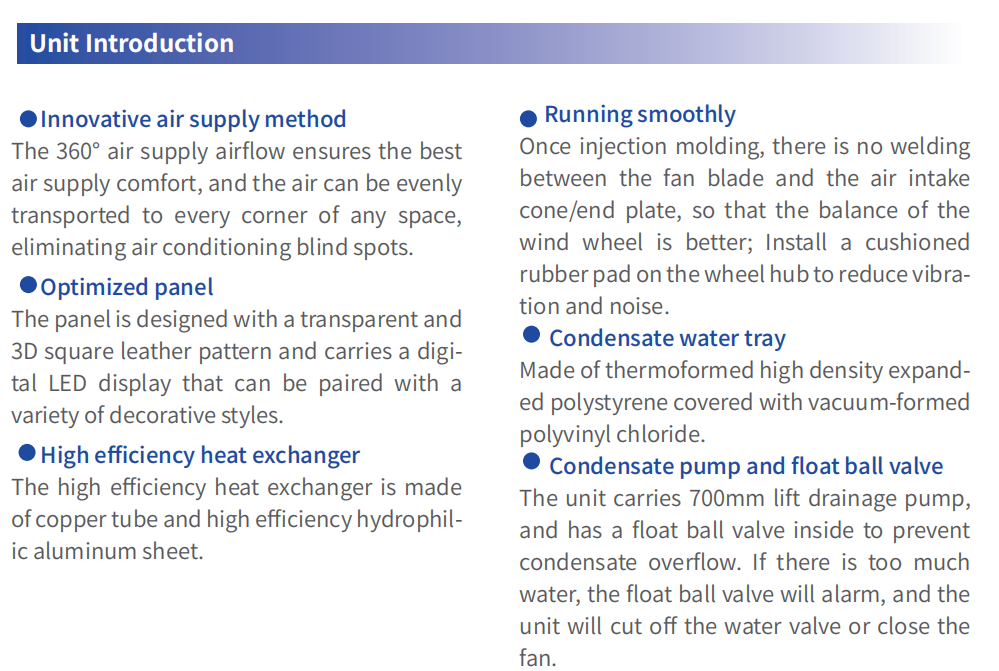

Seven Core Product Advantages

1. Circular ceiling‑recessed design for integrated decoration Main unit concealed in ceiling, only minimalist round panel visible. Matches modern hotel & office interior style without sharp square edges for neat premium visual effect.

2. 2‑row /3‑row coil selection to match different load requirements 2‑row coil for standard load with cost advantage; 3‑row coil delivers higher cooling‑heating output for hot‑humid climate or high‑load rooms, flexible project selection.

3. Self‑cleaning hydrophilic fin reduce maintenance workload Hydrophilic aluminium fin makes condensate water flow down rapidly to wash away surface dust, reduce mould growth, cut manual cleaning frequency and keep clean supply air.

4. Optional condensate lift‑pump for difficult ceiling drainage Lift‑pump solves drainage problem for renovation projects or ceiling without natural downward drain gradient, raise condensate discharge height.

5. Water‑leakage alarm prevent ceiling flooding risk Float‑sensor triggers alarm signal when condensate tray overflows, can interlock unit shutdown to avoid ceiling decoration damage.

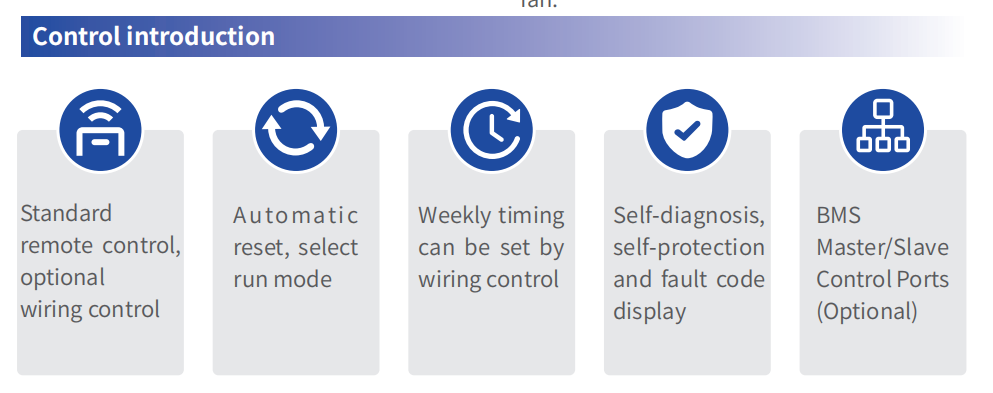

6. Rich optional smart & air‑health upgrades Standard wall thermostat; optional wireless remote & WIFI mobile control; UVC sterilization suppress bacteria & mould and improve indoor air quality for enclosed rooms.

7. Full factory certifications for global OEM / ODM ISO certified plant with 50+ HVAC engineers, export to over 30 countries. Custom panel colour, voltage and function configuration for worldwide bulk commercial orders.

Main Application Scenarios

1. Hospitality: Hotel & homestay ceiling water‑system air‑conditioning terminal;

2. Office & Retail: Offices, chain retail shops, clubs;

3. Meeting space: Small meeting‑room & reception room HVAC terminal;

4. Overseas Projects: International commercial water‑system projects, bulk OEM & ODM orders.

Installation & Operation Notes

1. Ceiling‑recessed unit. Installation and piping must be completed by certified HVAC technician.

2. Water piping shall be properly insulated to avoid condensation dripping.

3. Units without lift‑pump must guarantee downward slope for condensate drain pipe.

4. Wire leakage‑alarm signal according to schematic for BMS or local alarm device.

5. Clean filter and drain tray periodically to avoid sludge blockage.

6. Designed for chilled / hot water system, NOT for direct refrigerant DX split system.
